Duplex S32205 Bolts Supplier & Exporter in Europe, US & Gulf

Duplex S32205 Bolts Supplier & Exporter

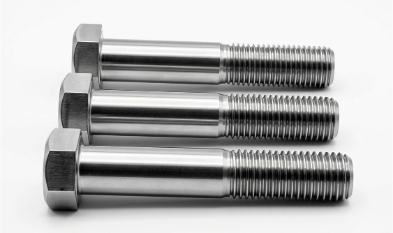

Duplex S32205 bolts are widely specified for offshore platforms, pressure vessel assemblies, desalination plants, structural flange systems, and high-chloride industrial environments where conventional stainless steel bolts fail under stress corrosion cracking and cyclic loading conditions. With a dual ferritic-austenitic microstructure, Duplex 2205 bolts deliver significantly higher yield strength than 316 stainless steel fasteners while maintaining excellent resistance to seawater pitting, chloride attack, and sour service exposure.

As a Duplex S32205 bolts supplier and exporter for Europe, the US, and Gulf countries, we supply heavy hex bolts, stud bolts, threaded rods, socket head bolts, and custom machined bolting components manufactured to ASTM A1082, ASTM A479, ASME B18, DIN, and ISO standards with EN 10204 3.1/3.2 certification, PMI testing, and export-ready packaging for offshore and industrial projects.

Duplex S32205 Bolts for Offshore, Pressure Vessel & Structural Applications

Duplex S32205 bolts are selected in high-pressure systems where standard austenitic stainless steel bolts may experience chloride stress corrosion cracking, preload loss, or premature corrosion under aggressive marine exposure. The high mechanical strength of Duplex 2205 allows engineers to reduce bolt diameter while maintaining structural integrity in flange assemblies, pressure-retaining joints, and subsea support systems.

In offshore platforms, seawater cooling systems, and refinery piping networks, Duplex 2205 bolts provide stable mechanical performance under cyclic loading, vibration, and thermal expansion. Their improved resistance to pitting and crevice corrosion makes them suitable for gasketed flange joints, heat exchangers, pressure vessels, pump skids, and marine structural assemblies operating in chloride-rich environments.

ASTM, ASME, DIN & ISO Standards

Mechanical Properties of Duplex 2205 Bolts

Chemical Composition of Duplex S32205 Bolts

Duplex 2205 Bolt Types, Thread Forms & Manufacturing Standards

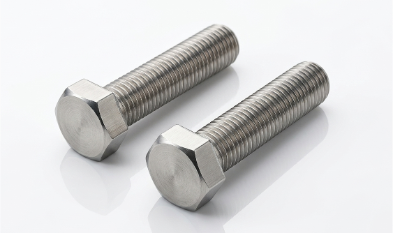

We manufacture and export Duplex S32205 bolts in multiple industrial configurations for offshore, petrochemical, marine, and pressure vessel applications. Product forms include heavy hex bolts, hex head bolts, stud bolts, threaded rods, anchor bolts, socket head cap screws, machine bolts, U-bolts, flange bolts, and custom CNC-machined fastening components.

Large-diameter stud bolts are commonly supplied for ASME flange assemblies, pressure vessels, and refinery turnaround projects where high preload retention and corrosion resistance are required in elevated chloride service conditions.

Metric & Imperial Thread Configurations

Duplex S32205 bolts are supplied in both metric and imperial thread systems according to regional project requirements. European offshore projects typically require DIN and ISO metric coarse or fine threads, while US refinery and oilfield projects commonly specify UNC and UNF thread forms according to ASME B18 dimensional standards.

Rolled threads are preferred for offshore and fatigue-sensitive applications because they preserve grain flow continuity and improve resistance to crack initiation during cyclic loading and vibration exposure.

Duplex S32205 Bolt Dimensions, Diameter Range & Length Availability

Duplex S32205 bolts are supplied in standard and custom dimensions for refinery, offshore, desalination, and structural applications.

Large-diameter heavy hex bolts and threaded studs are frequently supplied for ASME B16.5 flange assemblies, subsea manifolds, pressure vessels, and offshore piping systems.

Rolled Threads vs Cut Threads in Duplex 2205 Bolts

The thread manufacturing method directly affects the fatigue performance and service life of Duplex S32205 bolts in offshore and cyclic loading environments.

Rolled threads are manufactured by compressing the material through dies rather than removing metal through machining. This process maintains uninterrupted grain flow across the thread profile, significantly improving fatigue resistance and reducing stress concentration points. Offshore operators and pressure vessel contractors typically prefer rolled thread Duplex bolts for high-vibration marine applications and structural joints exposed to repeated loading cycles.

Cut threads are generally used for non-critical applications or custom bolt geometries where thread rolling may not be feasible. However, rolled thread Duplex 2205 bolts provide superior long-term performance in subsea, offshore, and petrochemical installations.

Anti-Galling Coatings & Surface Protection for Duplex Bolts

PTFE / Xylan Coated Duplex Bolts
PTFE and Xylan-coated Duplex S32205 bolts are commonly specified in offshore and desalination projects to reduce thread friction, prevent galling, and improve assembly reliability during high-torque installation.

Zinc Nickel & Marine Coating Systems
Marine-grade coating systems improve salt spray resistance and provide additional surface protection for offshore transportation, splash zone exposure, and long-term atmospheric corrosion conditions.

Torque Control & Installation Stability
Proper lubrication and coating selection help maintain consistent torque coefficients during installation. Controlled friction values are important in pressure-retaining flange assemblies where accurate bolt preload is required to maintain gasket sealing performance.

Corrosion Resistance of Duplex 2205 Bolts in Marine & Sour Service Conditions

Duplex S32205 bolts provide excellent resistance against chloride-induced pitting, crevice corrosion, and stress corrosion cracking in seawater, brine, and sour gas service environments.

Duplex 2205 bolts are widely used in seawater piping systems, offshore skids, desalination plants, marine pumps, and refinery process equipment where standard stainless fasteners may fail prematurely due to chloride exposure.

Key Applications

Global Export Markets

Aurum Overseas exports certified Duplex S32205 Bolts to major industrial markets worldwide with complete inspection reports, export documentation, and quality certifications.

Why Duplex S32205 Bolts Are Used Instead of 316 Stainless Bolts

Duplex 2205 bolts provide a balance between corrosion resistance, mechanical strength, and lifecycle cost. In offshore and marine environments where 316 stainless bolts may experience stress corrosion cracking or premature pitting, Duplex S32205 bolting systems offer significantly longer service life and improved operational reliability.

Inspection, Testing & EN 10204 Certification

All Duplex S32205 bolts are supplied with complete inspection and testing documentation according to international project requirements.

Additional third-party inspection can be arranged according to offshore, refinery, and petrochemical project specifications.

Export Packaging, Thread Protection & International Logistics

Duplex S32205 bolts are packed using export-grade packaging systems designed to prevent thread damage and surface contamination during international transportation.

Large-diameter stud bolts are protected using plastic thread caps, moisture-resistant wrapping, and heavy-duty cartons before loading into ISPM-15 certified seaworthy wooden crates. Export shipments are regularly supplied to Europe, the United States, UAE, Saudi Arabia, Qatar, Oman, and other offshore project regions through FOB, CIF, and DDP logistics arrangements.

Duplex S32205 Bolts Supplier for Europe, US & Gulf RFQ Requirements

We supply Duplex S32205 bolts with complete dimensional traceability, EN 10204 certification, PMI verification, and export documentation for offshore, petrochemical, pressure vessel, and desalination projects across Europe, the US, and Gulf countries. Custom machining, rolled thread production, project quantities, and urgent shutdown deliveries can be supported according to client specifications.

Projects requiring alternative duplex bolting grades for pressure piping, offshore systems, and industrial structural assemblies can also evaluate our Duplex S31803 Bolts range for refinery, marine, and chloride-resistant bolting applications.
