Monel 400 Bolts Supplier & Exporter in Europe, US & Gulf | ASTM B164 Nickel Copper Fasteners

Monel 400 Bolts Supplier & Exporter

Monel 400 bolts are high-performance nickel-copper alloy fasteners engineered for extreme marine, seawater, and chemical processing environments where conventional stainless steels fail due to chloride attack or stress corrosion cracking.

As a dedicated Monel 400 bolts supplier and exporter, we provide precision-engineered hex bolts and heavy hex bolts manufactured under strict ASTM B164 compliance, ensuring full traceability, verified mechanical performance, and international export readiness for Europe, the US, and Gulf regions.

Monel 400 Bolts for Marine, Chemical & Seawater Corrosion Resistance Applications

Monel 400 bolts are selected primarily not for extreme mechanical strength but for their exceptional resistance to corrosion in aggressive environments. The nickel-copper composition provides outstanding immunity to chloride-induced stress corrosion cracking, which is one of the most common failure mechanisms in offshore and marine installations.

In seawater systems, Monel 400 maintains stability even under high-velocity flow conditions where stainless steels like 316L begin to pit and degrade. In chemical processing, it performs reliably in hydrofluoric acid and reducing acid environments, making it a preferred fastening material for heat exchangers and acid handling equipment.

Unlike duplex stainless steels, Monel 400 is not dependent on chromium oxide passivation. Instead, its corrosion resistance is derived from its stable nickel matrix, which remains inert under chemical attack.

Engineering Role of Monel 400 Bolts in Seawater & Chemical Systems

In high-velocity seawater and chemical process joints, Monel 400 bolts act as the primary structural load-bearing elements that maintain gasket compression under fluctuating internal pressures and continuous chloride exposure. Their excellent ductility and corrosion immunity ensure long-term preload stability, reducing the risk of leakage or joint failure in marine and acid handling systems.

Why Monel 400 Outperforms Standard Stainless Steel Bolts

Compared to 316L stainless steel, Monel 400 provides significantly higher resistance to chloride-induced stress corrosion cracking and performs reliably in hydrofluoric acid and reducing environments where stainless steels rapidly degrade.

Superior Resistance to Chloride Stress Corrosion Cracking

The nickel-copper matrix of Monel 400 delivers exceptional immunity to chloride stress corrosion cracking, making these bolts highly reliable in seawater immersion, desalination systems, and offshore splash zones where conventional stainless steels fail.

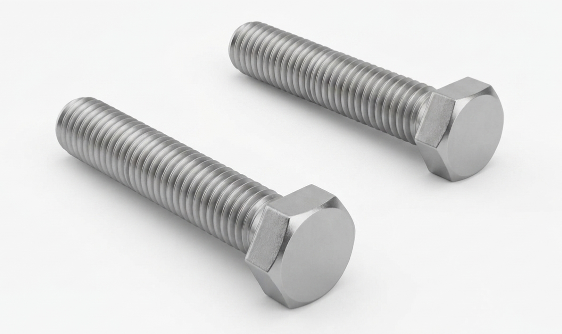

Types of Monel 400 Bolts We Supply

We supply a full range of industrial bolt types engineered for high-load structural and pressure-retaining applications across global marine, oil & gas, and chemical industries.

Chemical Composition of Monel 400 (UNS N04400 / WNR 2.4360)

Nickel-Copper Strengthening Mechanism: The high nickel content combined with controlled copper additions provides outstanding resistance to chloride stress corrosion cracking and hydrofluoric acid attack, making Monel 400 superior for marine and reducing chemical environments compared to stainless steels.

Mechanical & Physical Properties of Monel 400 Bolts

Monel 400 bolts offer a balanced combination of moderate strength and high ductility, making them ideal for dynamic marine loading conditions.

Physical Properties & Performance Under Extreme Conditions

Monel 400 bolts maintain structural stability under wide temperature variations and chemically aggressive environments.

Density, Melting Range & Thermal Stability: The alloy maintains stability at elevated operating temperatures, making it suitable for process piping, heat exchangers, and offshore systems subjected to thermal cycling.

Corrosion Resistance in Chloride, Seawater & Reducing Acid Environments: Monel 400 bolts perform exceptionally well in seawater immersion, desalination systems, hydrofluoric acid handling, and reducing acid environments where conventional stainless steels rapidly degrade.

Dimensional Range & Thread Specifications for Monel 400 Bolts

Monel 400 bolts are manufactured to meet global dimensional standards for compatibility with international engineering systems.

Precision CNC machining and rolled threading ensure tight tolerances and consistent thread performance across all production batches.

Manufacturing Standards & Production Engineering of Monel 400 Bolts

Monel 400 bolts are manufactured under strict metallurgical controls to ensure consistent mechanical properties and international compliance standards.

ASTM B164 – Nickel-Copper Alloy Fastener Standard: ASTM B164 governs the production of Monel 400 fasteners, ensuring chemical composition accuracy, mechanical integrity, and performance validation for critical marine and chemical applications.

Cold Forging vs Hot Forging Process for Bolt Head Integrity: Cold forging is used for smaller diameter precision bolts to maintain grain continuity, while hot forging is applied for larger diameters to achieve uniform deformation without internal stress accumulation.

Rolled Threads for Maximum Fatigue Resistance: Rolled threading improves fatigue life by maintaining continuous grain flow, reducing stress concentration points, and enhancing long-term durability in cyclic marine loading conditions.

Monel 400 vs Stainless Steel Bolts (Engineering Comparison)

Monel 400 outperforms stainless steel in marine and chemical environments where chloride exposure and reducing acids dominate. Unlike stainless steel, it does not rely on a passive oxide layer, making it more stable in dynamic seawater conditions.

Dissimilar Metal Compatibility & Anti-Galling Behavior

Monel 400 bolts exhibit strong performance in marine assemblies where they interface with carbon steel, stainless steel, or copper alloys. However, galvanic corrosion risk must be managed in highly conductive seawater environments when paired directly with carbon steel components.

Monel 400 has a natural tendency toward galling during metal-to-metal contact under high torque conditions. To mitigate this, controlled lubrication and anti-seize compounds are recommended during installation. In high-load assemblies, surface-treated nuts or controlled torque application methods are used to ensure smooth tightening without thread seizure.

These characteristics make Monel 400 highly reliable when installed using correct engineering practices rather than general-purpose fastening methods.

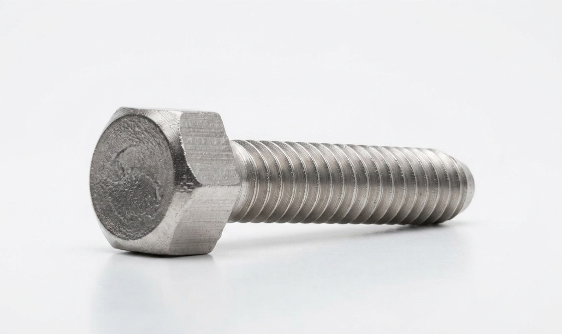

Applications of Monel 400 Bolts in Global Industries

Monel 400 bolts are widely used in critical infrastructure where material failure is not acceptable under continuous seawater or chemical exposure.

They are commonly used in offshore platform structures, seawater piping networks, desalination plants, hydrofluoric acid handling systems, brine heaters, heat exchanger assemblies, and non-oxidizing sour environments in oil and gas infrastructure where standard stainless steels fail due to chloride-induced degradation.

Regional Supply & Export Capability (Europe, US, Gulf)

Quality Assurance, Testing & Certification

Every batch of Monel 400 bolts undergoes full material traceability and inspection to ensure compliance with international engineering standards.

EN 10204 3.1 certification provides full traceability to heat number and chemical composition, while 3.2 certification ensures third-party validation for critical engineering projects. PMI testing confirms exact alloy composition accuracy.

Packaging, Handling & Export Protection System

All Monel 400 bolts are protected using industrial-grade export packaging systems designed for long-distance marine and air freight transport.

Each bolt is individually protected with thread caps to prevent mechanical damage during transit. Components are then packed in moisture-resistant wraps to prevent oxidation during sea freight exposure. Finally, shipments are secured in ISPM-15 certified heat-treated wooden crates to ensure compliance with international export regulations and full usability upon delivery.

Related Product — Monel 500 Bolts (High Strength Upgrade)

Monel 500 Bolts represent the high-strength evolution within the Monel fastener family, designed for applications where Monel 400’s corrosion resistance is required but higher mechanical strength and improved load-bearing capacity are critical.

While Monel 400 is preferred for general seawater and chemical resistance applications, Monel 500 is used in more mechanically demanding environments such as high-vibration offshore assemblies, structural marine fittings, and pressure-retaining components where improved tensile strength and hardness are required without compromising corrosion resistance.

Frequently Asked Questions
