Duplex S31803 Fasteners Supplier & Exporter for USA, Europe & Gulf Projects

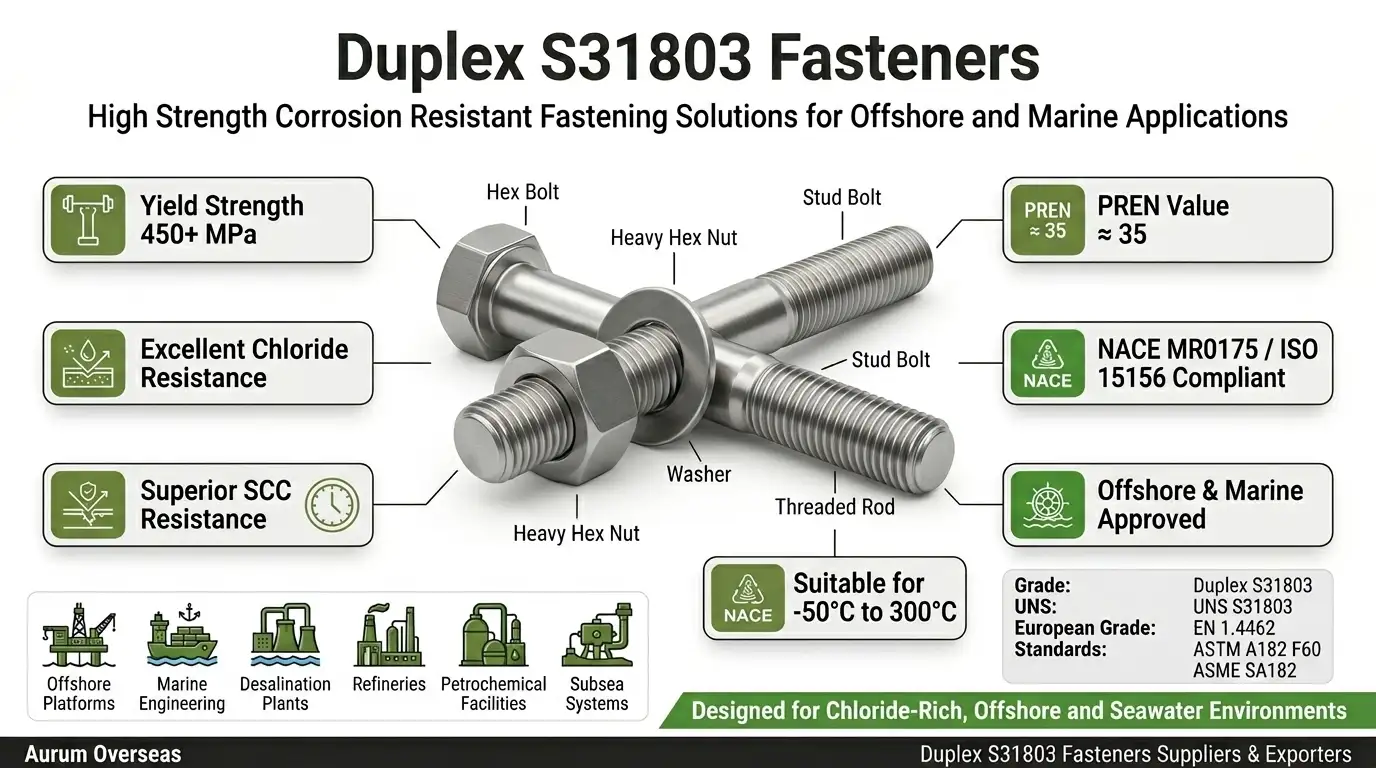

Aurum Overseas supplies and exports Duplex S31803 / UNS S31803 fasteners for offshore oil & gas platforms, marine systems, desalination plants, chemical processing, and chloride-intensive applications. These duplex stainless steel fasteners combine high mechanical strength with excellent resistance to pitting, crevice corrosion, and stress corrosion cracking.
The ferritic-austenitic structure provides higher strength than conventional austenitic grades such as 316L while maintaining reliable corrosion resistance in seawater, subsea, refinery, and pressure-system applications.
Aurum Overseas supplies Duplex S31803 fasteners to major international markets including the USA, Canada, Mexico, UAE, Saudi Arabia, Germany, France, Italy, Spain, Netherlands, Qatar, and Oman, supporting EPC contractors, manufacturers, distributors, and industrial buyers with reliable export supply.
Duplex S31803 Fasteners Specifications
| Specification | Details |
|---|---|
| Material Grade | Duplex S31803 |
| UNS Number | UNS S31803 |
| European Grade | EN 1.4462 |
| ASTM Standards | ASTM A182 F60, ASTM A276, ASTM A479 |
| ASME Standards | ASME SA182, SA479 |
| NACE Compliance | NACE MR0175 / ISO 15156 |
| Thread Standards | Metric, UNC, UNF, BSW |
| Size Range | M3 to M56 |
| Length Range | 3 mm to 200 mm+ |
| Surface Finish | Pickled, Passivated, PTFE Coated |
| Inspection | PMI, Hardness, Tensile, Corrosion Testing |
| Certification | EN 10204 3.1 / 3.2 |
Duplex S31803 Fasteners Metallurgy and Mechanical Properties

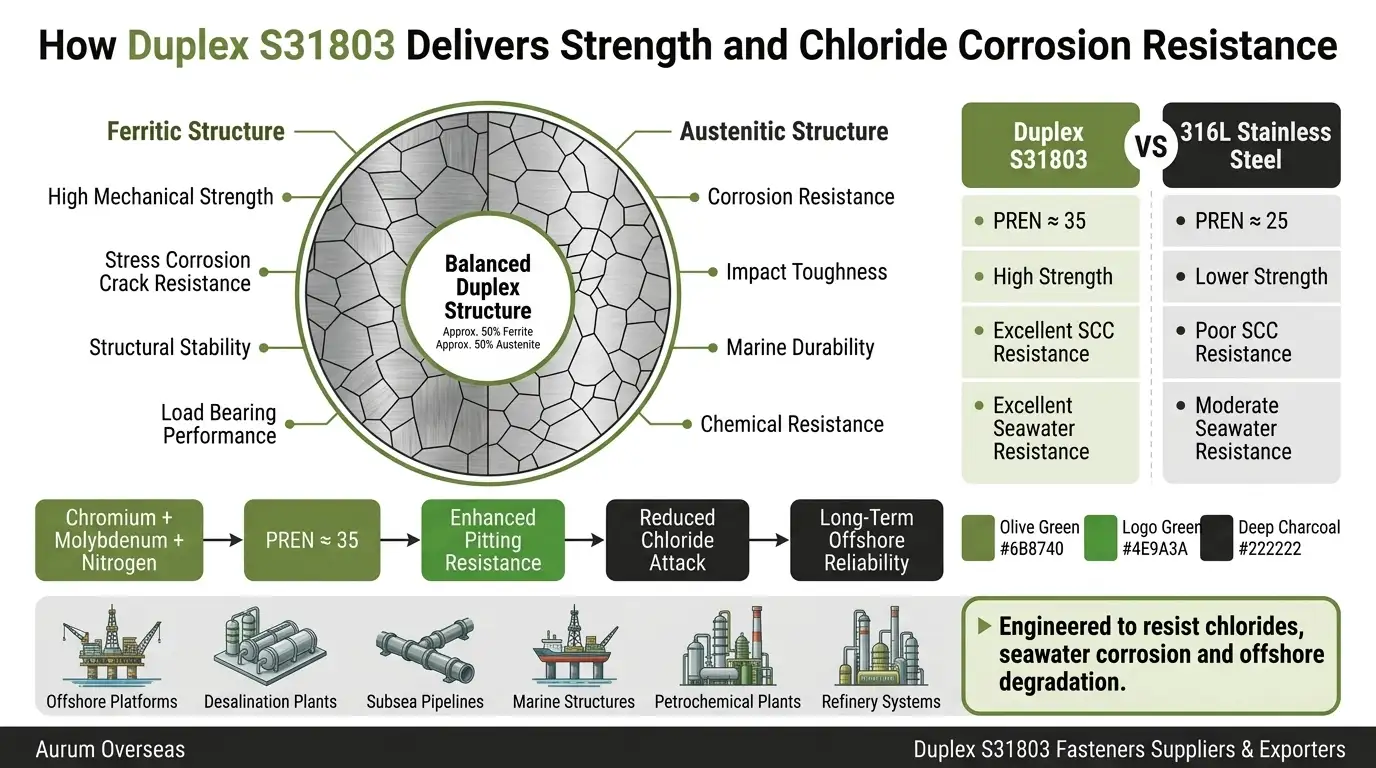

Duplex S31803 combines ferritic and austenitic phases to provide a useful balance of strength and corrosion resistance. Its chromium, molybdenum, and nitrogen content improves resistance to seawater corrosion, chloride pitting, and industrial chemical exposure.
Chemical Composition of Duplex S31803 Fasteners
| Element | Composition (%) | Industrial Benefit |
|---|---|---|
| Chromium | 22.0–23.0 | Improves pitting resistance |
| Nickel | 4.5–6.5 | Supports structural balance |
| Molybdenum | 3.0–3.5 | Improves crevice corrosion resistance |
| Nitrogen | 0.14–0.20 | Increases mechanical strength |
| Carbon | Max 0.030 | Supports weldability |
| Iron | Balance | Structural integrity |
Duplex S31803 has a PREN of approximately 35, supporting its performance in chloride-rich offshore and seawater environments.
Mechanical Properties of Duplex S31803 Fasteners
| Property | Value | Industrial Benefit |
|---|---|---|
| Tensile Strength | 620–800 MPa | High load-bearing performance |
| Yield Strength | 450 MPa Min | High structural strength |
| Elongation | 25% Min | Reliable ductility |
| Hardness | ≤31 HRC / ≤293 HB | Wear resistance |
| Impact Toughness | High | Suitable for offshore service |
Physical Properties of Duplex S31803 Fasteners
| Property | Value |
|---|---|
| Density | ~7.8 g/cm³ |
| Melting Range | 1350–1460°C |
| Thermal Conductivity | Higher than austenitic grades |
| Thermal Expansion | Lower than 316L |
Duplex S31803 Fasteners for Chloride and Seawater Service
Duplex S31803 fasteners provide strong resistance to chloride-induced pitting and stress corrosion cracking in offshore, marine, and desalination systems. They are also used in suitable sour gas environments containing H₂S and CO₂.
Their combination of corrosion resistance and mechanical strength makes them suitable for subsea assemblies, offshore drilling systems, refinery equipment, chemical processing, and seawater cooling applications. The source specifies an operating range of approximately -50°C to 300°C.
Duplex S31803 vs 316L vs Super Duplex 2507
| Property | Duplex S31803 | SS 316L | Super Duplex 2507 |
|---|---|---|---|
| Yield Strength | High (450+ MPa) | Low | Higher |
| PREN Value | ~35 | ~25 | >40 |
| SCC Resistance | Excellent | Poor | Excellent |
| Chloride Resistance | Excellent | Moderate | Superior |
| Relative Cost | Medium | Low | High |
ASTM, ASME, NACE and International Standards
Duplex S31803 fasteners can be supplied to major offshore, refinery, marine, and EPC requirements used across international markets.
| Standard | Description |
|---|---|
| ASTM A182 F60 | Duplex forged fasteners |
| ASTM A276 | Stainless steel bars |
| ASTM A479 | Pressure-service stainless bars |
| ASME SA182 | Pressure vessel specification |
| DIN 931 / 933 / 912 | Industrial fastener standards |
| ISO 4014 / 4017 / 4032 | Metric fastener standards |
| EN 1.4462 | European duplex designation |
| NACE MR0175 | Sour gas compliance |
| ISO 15156 | Oil & gas materials standard |
Duplex S31803 Fasteners Sizes, Threads and Types
Duplex S31803 fasteners are manufactured for offshore structures, desalination systems, refinery piping, pressure vessels, subsea assemblies, and marine equipment requiring high strength and chloride corrosion resistance.
Types of Duplex S31803 Fasteners

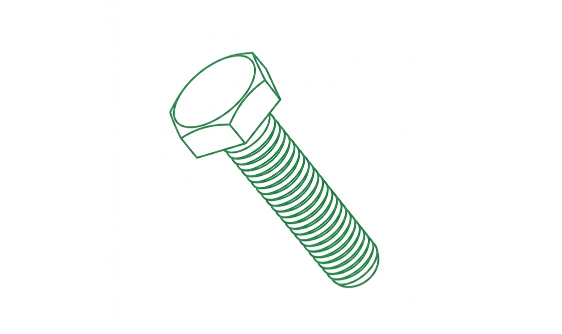

Bolts

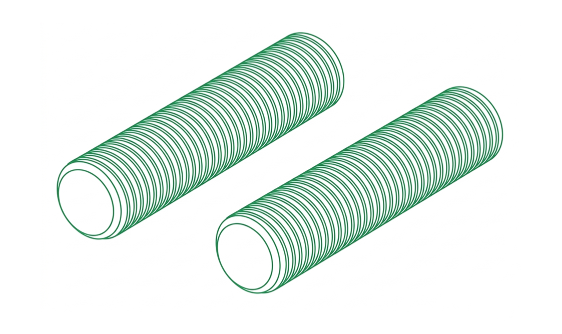

Studs

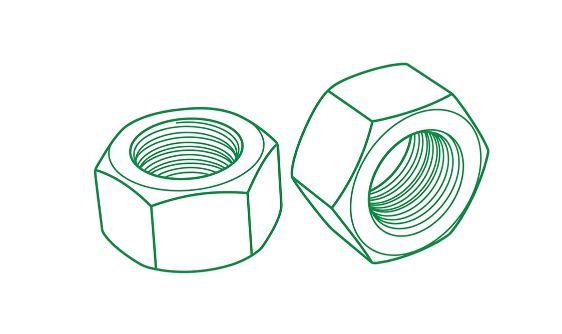

Nuts

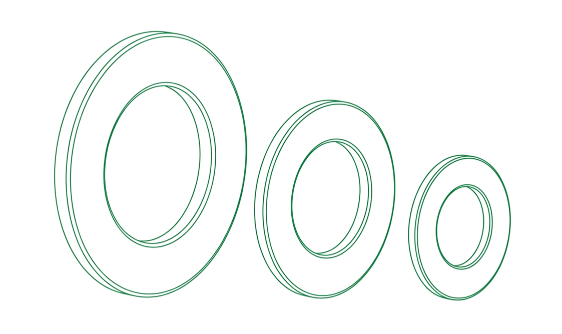

Washers

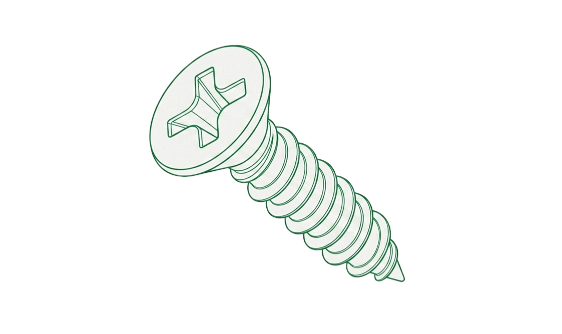

Screws

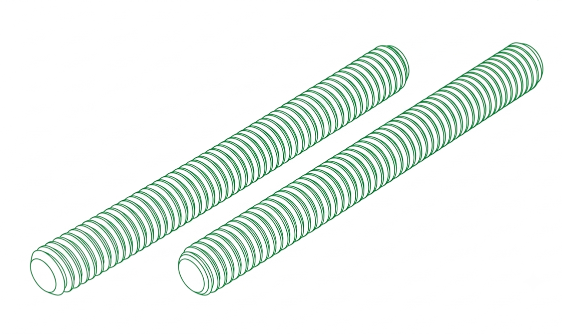

Threaded Bar
Size Range and Thread Standards
| Parameter | Range |
|---|---|
| Metric Sizes | M3 to M56 |
| Imperial Sizes | 3/8” to 2”+ |
| Length Range | 3 mm to 200 mm+ |
| Rod Length | Up to 5 meters |
| Thread Types | UNC, UNF, Metric, BSW |
| Thread Manufacturing | Rolled or Cut Threads |
Duplex S31803 Fasteners Surface Finishes
| Finish Type | Industrial Purpose |
|---|---|
| Pickled Finish | Removes oxide contamination |
| Passivated Finish | Improves corrosion resistance |
| PTFE Coated | Reduces galling |
| Machined Finish | Precision assembly applications |
Testing and Inspection of Duplex S31803 Fasteners
Duplex S31803 fasteners can undergo inspection for material verification, mechanical performance, duplex phase balance, corrosion resistance, and dimensional accuracy.
| Inspection Type | Purpose |
|---|---|
| PMI Testing | Material grade verification |
| Tensile Testing | Mechanical validation |
| Hardness Testing | Surface hardness control |
| Corrosion Testing | Chloride resistance validation |
| Ferrite Testing | Duplex phase confirmation |
| Dimensional Inspection | Precision compliance |
Fasteners can be supplied with EN 10204 3.1 / 3.2 certification, material traceability, and third-party inspection support according to project requirements.
Duplex S31803 Fasteners for Offshore, Marine and Petrochemical Applications
Duplex S31803 fasteners are used in offshore oil & gas platforms, subsea piping, desalination plants, marine structures, chemical processing systems, and refinery equipment exposed to seawater and chloride-rich conditions.
Their combination of strength and corrosion resistance supports long-term service in offshore and petrochemical environments where conventional stainless steel fasteners may face localized corrosion.
- Offshore oil & gas platforms
- Subsea piping
- Desalination plants
- Marine structures
- Chemical processing systems
- Refinery equipment
- Seawater cooling applications
- Pressure vessels
Global Export Markets
Aurum Overseas supplies its products to major industrial and engineering markets worldwide, supporting EPC contractors, manufacturers, distributors, and industrial buyers with reliable supply and export logistics.
USA
Canada
Mexico
UAE
Saudi
Arabia
Germany
France
Italy
Spain
Netherlands
Belgium
Poland
Qatar
Oman
Kuwait
Bahrain
Export Packaging and Global Logistics Support
Duplex S31803 fasteners are packed using moisture-resistant wrapping, sealed cartons, and fumigated wooden crates to reduce contamination and transit damage. Heat-number marking, traceability documentation, and export logistics support are available for international and EPC project deliveries.
Why Industrial Buyers Choose Aurum Overseas
Aurum Overseas supplies Duplex S31803 fasteners for offshore, marine, refinery, desalination, and petrochemical applications requiring reliable mechanical strength and chloride corrosion resistance.
Our capabilities include bulk supply, custom manufacturing, inspection, certification, traceability, and international delivery for industrial and EPC requirements.
Duplex S31803 vs Duplex 2205 Fasteners for Offshore Applications
Duplex S31803 fasteners are widely used for offshore, marine, and refinery applications requiring high strength and excellent chloride corrosion resistance. For related duplex requirements, Duplex 2205 / S32205 Fasteners Suppliers & Exporters can be considered where project specifications call for the corresponding duplex grade.
For broader duplex material requirements, Duplex Fasteners Suppliers & Exporters support offshore, petrochemical, desalination, marine, and EPC applications.
| Comparison Factor | Duplex S31803 | Duplex 2205 / S32205 |
|---|---|---|
| Duplex Structure | Ferritic-Austenitic | Ferritic-Austenitic |
| PREN | ~35 | ~35–36+ |
| Yield Strength | 450 MPa Min | 450+ MPa |
| Chloride Resistance | Excellent | Excellent |
| SCC Resistance | Excellent | Excellent |
| Typical Applications | Offshore, marine, refinery | Offshore, desalination, subsea |
| Best Suited For | General duplex offshore service | Chloride-intensive service |
FAQs – Duplex S31803 Fasteners
Duplex S31803 fasteners provide high strength and excellent chloride corrosion resistance, making them suitable for offshore platforms, subsea systems, and marine environments.
Yes, the source specifies Duplex S31803 fasteners for NACE MR0175 / ISO 15156 requirements and sour gas environments containing H₂S.
They are widely used in offshore oil & gas, desalination, petrochemical, chemical processing, marine engineering, and refinery systems operating in chloride-rich environments.
Aurum Overseas can supply Duplex S31803 fasteners with EN 10204 3.1 / 3.2 certification, PMI, tensile testing, hardness testing, and third-party inspection documentation.
Yes, Aurum Overseas exports Duplex S31803 fasteners across the USA, Europe, UAE, Saudi Arabia, Oman, Qatar, Kuwait, and other international industrial markets.
