Duplex S32205 / F60 Nuts Suppliers & Exporters
Aurum Overseas is a premier Duplex S32205 Nuts Supplier and specialized Duplex S32205 Nuts Exporter, delivering enhanced nitrogen-alloyed dual-phase stainless steel fasteners engineered for heavy-duty marine, offshore, and chemical processing installations.

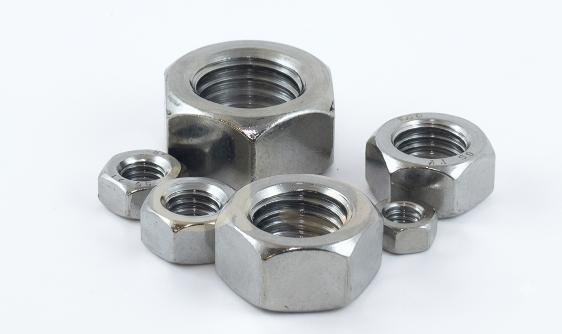

-nuts.webp "Duplex Steel S32205 / F60 Nuts")
Manufactured in full compliance with ASTM A182 and ASTM A240 standards, Duplex Steel S32205 Nuts feature optimized elemental windows that guarantee minimum PREN values of 35. These high-integrity fasteners exhibit double the yield strength of standard 316L, combined with superior resistance to pitting, crevice attack, and chloride-induced stress corrosion cracking.
As a globally recognized Duplex S32205 Nuts Exporter, Aurum Overseas supplies fully tested and traceable bolting components across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
Duplex Steel Fasteners Specifications
| Parameter | Specification / Technical Range |
|---|---|
| Material Grade | Duplex Steel S32205 / UNS S32205 / ASTM A182 F60 / Dual Certified F51/F60 |
| Manufacturing Standards | ASTM A182, ASTM A240, ASME SA182, DIN 934, ISO 4032, ANSI B18.2.2 |
| Size Range | M3 to M100 | 3/16" to 4" | Custom Dimensions |
| Thread Configuration | ASME B1.1 2A/3A - 2B/3B Unified (UNC, UNF, 8UN) & B1.13M Metric |
| Nut Formats | Hex Head, Heavy Hex, Square, Lock, Slotted, Coupling, Flange Nuts |
| Testing Standards | ASTM E8, SAE J411, EN 14399, ASME B1.2, ISO 7090, DIN 125 |
What are Duplex UNS S32205 Nuts?
UNS S32205 Nuts are nitrogen-enhanced second-generation dual-phase stainless steel fasteners designed to improve upon the chemical consistency of standard S31803 alloys.
By tightening the minimum allowable thresholds for chromium (21.0–23.0%), molybdenum (2.50–3.50%), and nitrogen (0.14–0.20%), Duplex Steel F60 Nuts prevent the formation of brittle intermetallic phases like sigma during welding or heat exposure. This optimized chemistry guarantees consistent corrosion resistance and structural toughness across high-pressure flange joints.
Duplex Steel Fasteners Technical Properties & Composition
Chemical Composition of Duplex Steel S32205 Nuts (%)
| Element | UNS S32205 (Grade F60) Content (%) |
|---|---|
| Carbon (C) | 0.030 max |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.030 max |
| Sulfur (S) | 0.020 max |
| Chromium (Cr) | 21.0 – 23.0 |
| Molybdenum (Mo) | 2.50 – 3.50 |
| Nickel (Ni) | 4.50 – 6.50 |
| Nitrogen (N) | 0.14 – 0.20 |
| Iron (Fe) | 63.54 min (Balance) |
Physical & Thermal Properties of Duplex Steel S32205
| Property / Parameter | Technical Value |
|---|---|
| Density (g/cm³ / lb/in³) | 7.805 / 0.285 |
| Melting Point (°C / °F) | 1420 – 1465 / 2588 – 2669 |
| Yield Strength (0.2% Offset, MPa) | ≥ 450 |
| Tensile Strength (MPa) | ≥ 620 |
| Elongation (% in 50mm) | ≥ 25 |
Equivalent Grade Standards
| Standard Body | Designation |
|---|---|
| UNS | UNS S32205 |
| ASTM / ASME | ASTM A182 F60 / ASME SA182 F60 |
| EN / DIN / Werkstoff Nr. | 1.4462 / X2CrNiMoN22-5-3 |
| Trade Name | SAF 2205 |
Why Industries Prefer Duplex Steel F60 Nuts
Subsea systems and marine processing facilities favor Duplex Steel F60 Nuts due to their restricted chemical range, which guarantees higher pitting resistance in hot sea water compared to standard S31803 options.
As a leading Duplex S32205 Nuts Supplier, Aurum Overseas manufactures fasteners that meet both F51 and F60 forging standards via dual certification. This strict metallurgical control minimizes interphase precipitation, retaining high impact strength down to -50° C and ensuring long-term joint seal tightness in high-pressure oilfield manifolds.
Types of Duplex Steel Nuts
Aurum Overseas supplies a comprehensive range of duplex stainless steel nut configurations manufactured according to standard DIN, ASME, and ISO dimensional tolerances for multiple engineering assemblies.
Duplex Steel S32205 Hex Head Nuts
Duplex Steel S32205 Square Nuts
Duplex Steel S32205 Lock Nuts
Duplex Steel S32205 Eye Nuts
Duplex Steel S32205 Wing Nuts
Duplex Steel S32205 T Nuts
Duplex Steel S32205 Panel Nuts
Duplex Steel S32205 Coupling Nuts
Duplex Steel S32205 Dome Nuts
Key Advantages of UNS S32205 Nuts
Guaranteed PREN ≥ 35
Tighter chemical limits provide reliable protection against localized pitting in chloride-rich solutions.
Dual Certification Capability
Fully satisfies both S31803 (F51) and S32205 (F60) specifications, streamlining inventory management.
High Proof Load Performance
Yield strength exceeding 450 MPa permits smaller bolt sizes and lighter flange construction.
Intermetallic Phase Defense
Controlled nitrogen addition suppresses harmful sigma and chi phase precipitation.
Low Thermal Expansion Rate
Matches carbon steel thermal expansion more closely than austenitic grades, reducing gasket fatigue.
Key Applications of Duplex S32205 Nuts
| Industry Sector | Primary Fastener Application | Key Service Environment |
|---|---|---|
| Offshore Oil & Gas Extraction | Subsea Xmas trees, manifold structural tie-bars | Deepwater marine splash zones and high-pressure sour hydrocarbons |
| Desalination & Reverse Osmosis | High-pressure seawater feed pump bolting | High-velocity concentrated brine and saline solutions |
| Pulp & Paper Processing | Bleaching tower piping flanges, liquor digesters | Aggressive chloride-based bleaching agents and alkaline solutions |
| Chemical Transport & Storage | Cargo tank securing systems, chemical tanker valves | Multi-chemical transport exposure requiring broad corrosion resistance |
Quality Testing & Inspection
Aurum Overseas implements rigorous quality control procedures for all orders managed by our team as a dedicated Duplex S32205 Nuts Supplier and Duplex S32205 Nuts Exporter.
- Chemical & Alloy Verification: XRF spectrometry and Positive Material Identification (PMI) to confirm precise alloy balance.
- Mechanical Strength Testing: Tensile, proof load, and hardness testing performed per ASTM E8, SAE J411, and EN 14399 standards.
- Sour Service Resistance: Inspection to verify sulfide stress cracking resistance per NACE MR0175 / ISO 15156 requirements.
- Dimensional Accuracy: Thread pitch and flatness gauging per ASME B1.2, DIN 125, DIN 9021, ISO 7090, and JIS B 1256 standards.
- Traceable Documentation: Detailed chemical heat analysis and material test reports provided per EN 10204 3.1 specifications.
Global Export Markets
As a global Duplex S32205 Nuts Exporter, Aurum Overseas supplies fully certified fasteners to major energy, chemical, and industrial heat-treating hubs worldwide.
USA
Canada
Mexico
Germany
United Kingdom
France
Italy
Netherlands
Norway
UAE
Saudi Arabia
Qatar
Kuwait
Oman
Singapore
Malaysia
Australia
Frequently Asked Questions
While both belong to the 2205 duplex family, UNS S32205 Nuts feature higher minimum contents of chromium, molybdenum, and nitrogen. This guarantees a higher PREN (≥ 35) and superior pitting resistance compared to basic S31803.
Yes, Duplex Steel F60 Nuts meet and exceed all chemical and mechanical requirements of Grade F51, allowing dual-certified S31803/S32205 nuts to serve as direct upgrades for F51 specifications.
Yes, Aurum Overseas regularly exports certified Duplex Steel S32205 Nuts across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
As a specialized Duplex S32205 Nuts Supplier, Aurum Overseas manufactures nuts in imperial Unified threads (UNC, UNF, 8UN) and Metric series to fit marine valve bodies, pumps, and ASME flange connections.
Yes, as an established Duplex S32205 Nuts Exporter, every delivery includes fully traceable EN 10204 3.1 Material Test Reports detailing heat analysis, mechanical proof loads, and PREN calculations.
Contact Aurum Overseas
Aurum Overseas provides high-performance Duplex S32205 Nuts manufactured to strict international quality standards with rapid global dispatch.
Contact our sales engineering team today for technical support and prompt commercial quotes.
