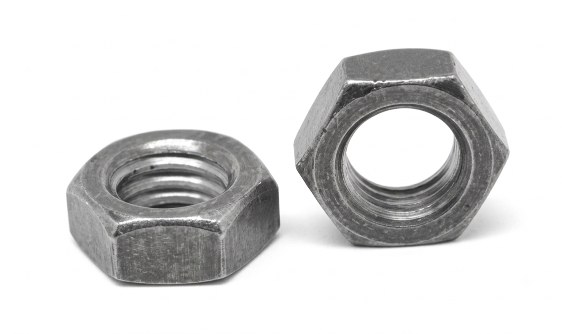

Hastelloy X Nuts Suppliers & Exporters
Aurum Overseas is a prominent Hastelloy X Nuts Supplier and Hastelloy X Nuts Exporter, manufacturing high-temperature, nickel-chromium-iron-molybdenum fasteners designed for extreme thermal stress and high-temperature oxidation environments.
Engineered under ASTM B572 UNS N06002 Nuts specifications, these high-performance alloy fasteners maintain exceptional tensile strength, creep-rupture resistance, and formability at operating temperatures reaching 1200°C (2200°F).
As an established Hastelloy X Nuts Exporter, Aurum Overseas supplies fully tested and certified bolting components across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
Hastelloy Fasteners Specifications
| Parameter | Specification / Technical Range |
|---|---|
| Material Grade | Hastelloy X / Alloy X |
| UNS Number | UNS N06002 |
| Werkstoff Number | 2.4665 |
| Common Trade Names | Hastelloy X / Alloy X / N06002 |
| Manufacturing Standards | ASTM B572, ASME SB572, DIN 934, ISO 4032, ANSI B18.2.2 |
| Size Range | M3 to M100 | 3/16" to 4" | Custom Dimensions |
| Thread Configuration | ASME B1.1 2A/3A - 2B/3B Unified (UNC, UNF, 8UN) & B1.13M Metric |
| Nut Formats | Hex Head, Heavy Hex, Square, Lock, Slotted, Coupling, Flange Nuts |
| Testing Standards | ASTM E8, SAE J411, EN 14399, ASME B1.2, ISO 7090, DIN 125 |
What are Hastelloy X Nuts?
UNS N06002 Nuts are matrix-stiffened nickel-chromium-iron-molybdenum alloy fasteners formulated specifically to survive high-temperature combustion atmospheres where conventional stainless steel and standard nickel alloys degrade due to oxidation, carburization, or thermal fatigue.
Manufactured in accordance with ASTM B572 UNS N06002 Nuts standards, this grade incorporates a balanced balance of chromium (20.5% to 23.0%), iron (17.0% to 20.0%), and molybdenum (8.0% to 10.0%). This chemistry creates an adherent, protective oxide film that prevents spalling and degradation in cyclic high-heat applications up to 1200°C.
Hastelloy Fasteners Technical Properties & Composition
Chemical Composition of Hastelloy X Nuts (%)
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.5 – 23.0 |
| Iron (Fe) | 17.0 – 20.0 |
| Molybdenum (Mo) | 8.0 – 10.0 |
| Cobalt (Co) | 0.5 – 2.5 |
| Carbon (C) | 0.05 – 0.15 |
| Manganese (Mn) | 1.0 max |
| Silicon (Si) | 1.0 max |
| Copper (Cu) | 0.50 max |
| Titanium (Ti) | 0.15 max |
Physical & Mechanical Properties of Hastelloy X
| Property / Parameter | Value |
|---|---|
| Density | 9.2 g/cm³ |
| Melting Point | 1370°C (2500°F) |
| Tensile Strength | 760 MPa / 110,000 Psi |
| Yield Strength (0.2% Offset) | 350 MPa / 51,000 Psi |
| Elongation (%) | 40% |
Equivalent Grade Standards
| Grade | Werkstoff Nr. | UNS | EN / ISO | JIS |
|---|---|---|---|---|
| Hastelloy X | 2.4665 | N06002 | NiCr22Fe18Mo | NW 0002 |
Why Industries Prefer Hastelloy X Nuts
Aerospace and industrial heating engineers select Hastelloy X Nuts primarily for their combination of oxidation resistance, ease of fabrication, and high creep-rupture strength during continuous exposure to furnace atmospheres.
As a leading Hastelloy X Nuts Supplier, Aurum Overseas supplies precision-machined bolting that resists stress-corrosion cracking in petrochemical reforming operations and avoids the age-hardening embrittlement common in other high-temperature superalloys after prolonged thermal exposure.
Types of Hastelloy X Nuts
Aurum Overseas supplies a comprehensive range of Hastelloy X nut configurations manufactured according to standard DIN, ASME, and ISO dimensional tolerances for multiple engineering assemblies.
Hastelloy X Hex Head Nuts
Hastelloy X Square Nuts
Hastelloy X Lock Nuts
Hastelloy X Eye Nuts
Hastelloy X Wing Nuts
Hastelloy X T Nuts
Hastelloy X Panel Nuts
Hastelloy X Coupling Nuts
Hastelloy X Dome Nuts
Key Advantages of Hastelloy X Nuts
High Oxidation Resistance
Forms a tight chromium-oxide scale that resists oxidation at temperatures up to 1200°C (2200°F).
Carburization and Nitriding Protection
Prevents carbon diffusion and embrittlement in furnace gases and petrochemical reformers.
Thermal Fatigue Resistance
Withstands rapid thermal cycling without cracking or joint loosening.
Good Ductility and Formability
High elongation properties (40%) allow for precision thread forming and secure torque retention.
No Cobalt-Base Price Instability
Provides high-temperature performance comparable to cobalt-base alloys while maintaining a cost-effective nickel-iron matrix.
Key Applications of Hastelloy X Nuts
| Industry Sector | Primary Fastener Application | Key Service Environment |
|---|---|---|
| Aerospace & Gas Turbines | Combustion cans, transition ducts, flame holders | Direct exposure to high-velocity jet fuel combustion gases up to 1200°C |
| Industrial Heat Treating | Retort bolting, furnace baffles, conveyor grid hardware | High-temperature carburizing, nitriding, and inert gas furnace zones |
| Petrochemical Processing | Pyrolysis tubing flanges, reformer furnace internals | High-heat hydrocarbon cracking gases and thermal cycling conditions |
| Nuclear Engineering | High-temperature gas-cooled reactor (HTGR) components | Helium-cooled core structure supports and heat exchange units |
Quality Testing & Inspection
Aurum Overseas enforces thorough testing procedures for all shipments delivered as a qualified Hastelloy X Nuts Supplier and Hastelloy X Nuts Exporter.
- Chemical Verification: X-ray Fluorescence (XRF) and PMI testing to verify nickel, chromium, iron, and molybdenum levels.
- Mechanical & High-Temp Testing: Room-temperature tensile testing per ASTM E8, combined with hardness and elevated-temperature verification.
- Dimensional Precision: Thread checking and flatness inspection per ASME B1.2, ANSI B18.2.2, and ISO standards.
- Traceable Documentation: Full EN 10204 3.1 Material Test Reports issued with every batch, confirming chemical heat analysis and mechanical compliance.
Global Export Markets
As a global Hastelloy X Nuts Exporter, Aurum Overseas supplies fully traceable high-temperature hardware to major aerospace, energy, and furnace construction centers worldwide.
USA
Canada
Mexico
Germany
United Kingdom
France
Italy
Netherlands
Norway
UAE
Saudi Arabia
Qatar
Kuwait
Oman
Singapore
Malaysia
Australia
Frequently Asked Questions
Hastelloy X nuts maintain excellent oxidation resistance, structural strength, and creep resistance at operating temperatures up to 1200°C (2200°F).
UNS N06002 Nuts are produced from bar and rod stock matching ASTM B572 UNS N06002 Nuts material standards.
No, Hastelloy X is a solid-solution strengthened alloy that maintains good ductility (40% elongation) even after long exposure to temperatures in the 650°C to 900°C range.
Thanks to its balanced chromium, iron, and nickel chemistry, Hastelloy X offers exceptional resistance to carburization and nitriding in heat-treating furnace retorts.
Yes, as a globally recognized Hastelloy X Nuts Exporter, Aurum Overseas delivers fully certified bolting to clients across Europe, the Middle East, Asia-Pacific, and the Americas.
We supply metric series (M3 to M100) and imperial Unified threads (UNC, UNF, 8UN) tailored for high-temperature flange and furnace assemblies.
Contact Aurum Overseas
Aurum Overseas manufactures precision-engineered Hastelloy X Nuts for high-temperature and severe thermal environments, backed by comprehensive certification and prompt worldwide dispatch.
Contact our sales engineering team today for technical support and prompt commercial quotes.
