Inconel 660 Nuts Suppliers & Exporters
Aurum Overseas is a premier Inconel 660 Nuts Supplier and specialized Inconel 660 Nuts Exporter, delivering precipitation-hardenable iron-nickel-chromium superalloy fasteners engineered for elevated temperature service and high tensile bolting applications.

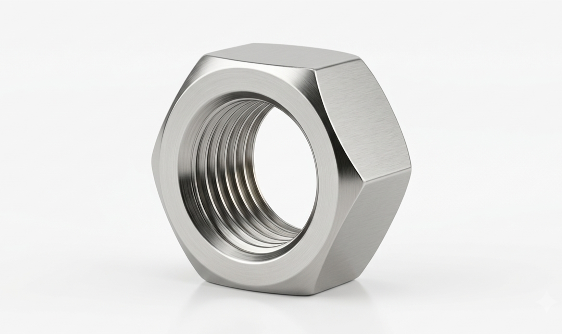

-nuts.webp "Inconel 660 Nuts")
Manufactured in full compliance with ASTM A453 Grade 660 Nuts standards, UNS S66286 Nuts combine exceptional yield strength up to 700°C (1300°F) with non-magnetic permeability and superior stress-rupture resistance. These precision-engineered fasteners retain high creep-rupture strength under continuous thermal loads, preventing joint relaxation in high-stress turbine and manifold systems.
As a globally recognized Inconel 660 Nuts Exporter, Aurum Overseas supplies fully tested and traceable bolting components across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
Inconel Fasteners Specifications
| Parameter | Specification / Technical Range |
|---|---|
| Material Grade | Inconel 660 / Alloy A286 / Grade 660 (Class A, B, C, D) |
| UNS Number | UNS S66286 |
| Werkstoff Number | 1.4980 |
| Manufacturing Standards | ASTM A453, ASME SA453, DIN 934, ISO 4032, ANSI B18.2.2 |
| Size Range | M3 to M100 | 3/16" to 4" | Custom Dimensions |
| Thread Configuration | ASME B1.1 2A/3A - 2B/3B Unified (UNC, UNF, 8UN) & B1.13M Metric |
| Nut Formats | Hex Head, Heavy Hex, Square, Lock, Slotted, Coupling, Flange Nuts |
| Testing Standards | ASTM E8, SAE J411, EN 14399, ASME B1.2 |
What are Inconel High-Performance Alloy Nuts?
UNS S66286 Nuts (commonly known as Alloy A286 Nuts) are specialized, high-strength metal fasteners built to handle extreme heat and heavy loads without snapping or loosening.
Unlike standard stainless steel, these nuts go through a dedicated heat-treatment process (age-hardening) using titanium and aluminum. This gives them exceptionally high tensile strength up to 700°C (1300°F) while keeping them non-magnetic and resistant to heat-induced rust and stress cracking.
Inconel Fasteners Technical Properties & Composition
Chemical Composition of ASTM A453 Grade 660 (%)
| Element | ASTM A453 Grade 660 (UNS S66286) |
|---|---|
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.03 max |
| Silicon (Si) | 1.00 max |
| Nickel (Ni) | 24.00 – 27.00 |
| Chromium (Cr) | 13.50 – 16.00 |
| Molybdenum (Mo) | 1.00 – 1.50 |
| Titanium (Ti) | 1.90 – 2.35 |
| Aluminum (Al) | 0.35 max |
| Vanadium (V) | 0.10 – 0.50 |
| Boron (B) | 0.001 – 0.010 |
Mechanical Properties (ASTM A453 Grade 660 Class A/B/C/D)
| Property / Parameter | Class A, B & C | Class D |
|---|---|---|
| Tensile Strength | ≥ 895 MPa (130 ksi) | ≥ 895 MPa (130 ksi) |
| Yield Strength (0.2% Offset) | ≥ 585 MPa (85 ksi) | ≥ 725 MPa (105 ksi) |
| Elongation (in 4D) | ≥ 15% | ≥ 15% |
| Reduction of Area | ≥ 18% | ≥ 18% |
| Brinell Hardness | 248 – 341 HB | 248 – 341 HB |
| Rockwell Hardness | 24 – 37 HRC | 24 – 35 HRC |
Equivalent Grade Standards
| Standard Body | Designation |
|---|---|
| UNS | UNS S66286 |
| ASTM / ASME | A453 Grade 660 / SA453 Grade 660 |
| EN / DIN / Werkstoff Nr. | 1.4980 / X6NiCrTiMoVB25-15-2 |
| Common Name | Alloy A286 |
Why Industries Prefer Alloy A286 Nuts
Aerospace and power generation engineers prefer ASTM A453 Grade 660 Nuts due to their excellent strength-to-weight ratio and elevated yield capabilities. The alloy retains high creep strength during continuous thermal exposure without undergoing intergranular embrittlement.
As an experienced Inconel 660 Nuts Supplier, Aurum Overseas manufactures precision bolting that maintains low magnetic permeability even after severe cold working. The additions of molybdenum and vanadium enhance notch-rupture strength, ensuring reliable thread engagement in high-vibration power turbines, turbochargers, and aerospace fasteners.
Types of Inconel Fasteners
Aurum Overseas supplies a comprehensive range of nickel alloy nut configurations manufactured according to standard DIN, ASME, and ISO dimensional tolerances for multiple engineering assemblies.
Incoloy Hex Head Nuts
Incoloy Square Nuts
Incoloy Lock Nuts
Incoloy Eye Nuts
Incoloy Wing Nuts
Incoloy T Nuts
Incoloy Panel Nuts
Incoloy Coupling Nuts
Incoloy Dome Nuts
Key Advantages of Inconel High-Performance Alloy Nuts
High Creep-Rupture Strength
Age-hardening delivers superior load retention at continuous temperatures up to 700°C (1300°F).
Non-Magnetic Behavior
Maintains low magnetic permeability in critical electronic and aerospace installations.
Notch Toughness
Vanadium and boron micro-alloying prevent embrittlement around high-stress thread roots.
High Yield Capacity
Class D variants achieve yield strengths exceeding 725 MPa for high-torque bolting requirements.
Thermal Shock Resistance
Low coefficient of thermal expansion limits joint relaxation during thermal cycling.
Key Applications of Inconel Fasteners
| Industry Sector | Primary Fastener Application | Key Service Environment |
|---|---|---|
| Aerospace & Jet Engines | Turbine casing bolting, tailpipe fasteners, manifold studs | High thermal exhaust gases with continuous vibration |
| Gas Turbines & Power Plants | High-temperature flange bolting, steam turbine casing joints | Elevated pressure and temperature steam and combustion gases |
| Automotive & Turbochargers | Turbocharger housing fasteners, exhaust manifold nuts | Extreme thermal cycling and high-velocity engine exhaust |
| Oil & Gas Extraction | Non-magnetic downhole equipment, subsea valve bolting | Moderate sour environments requiring high yield strength |
Quality Testing & Inspection
Aurum Overseas implements rigorous quality control procedures for all orders managed by our team as a dedicated Inconel 660 Nuts Supplier and Inconel 660 Nuts Exporter.
- Chemical & Alloy Verification: XRF spectrometry and Positive Material Identification (PMI) to confirm precise alloy balance.
- Mechanical Strength Testing: Tensile, proof load, and Rockwell C hardness testing performed per ASTM E8, SAE J411, and EN 14399 standards.
- Sour Service Resistance: Inspection to verify sulfide stress cracking resistance per NACE MR0175 / ISO 15156 requirements.
- Dimensional Accuracy: Thread pitch and flatness gauging per ASME B1.2, DIN 125, DIN 9021, ISO 7090, and JIS B 1256 standards.
- Traceable Documentation: Detailed chemical heat analysis and material test reports provided per EN 10204 3.1 specifications.
Global Export Markets
As a global Inconel 660 Nuts Exporter, Aurum Overseas supplies fully certified fasteners to major energy, chemical, and industrial heat-treating hubs worldwide.
USA
Canada
Mexico
Germany
United Kingdom
France
Italy
Netherlands
Norway
UAE
Saudi Arabia
Qatar
Kuwait
Oman
Singapore
Malaysia
Australia
Frequently Asked Questions
ASTM A453 Grade 660 Nuts maintain high mechanical strength and creep-rupture resistance in continuous service up to 700°C (1300°F).
Yes, Inconel 660 is commonly designated as Alloy A286 (UNS S66286), featuring 24-27% nickel, 13.5-16% chromium, and titanium additions for age-hardening.
Yes, Aurum Overseas regularly exports certified UNS S66286 Nuts across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
The classes define distinct heat treatment cycles. Class A, B, and C specify a minimum yield strength of 585 MPa (85 ksi), while Class D requires a higher yield strength of 725 MPa (105 ksi).
Contact Aurum Overseas
Aurum Overseas provides high-performance Inconel 660 Nuts manufactured to strict international quality standards with rapid global dispatch.
Contact our sales engineering team today for technical support and prompt commercial quotes.
