SS 410 Nuts Suppliers & Exporters in USA, UAE, Saudi Arabia & Europe
Aurum Overseas is a premier SS 410 Nuts Supplier and specialized SS 410 Nuts Exporter. Type 410 is a general-purpose 12% chromium martensitic stainless steel that can be heat-treated to achieve exceptionally high mechanical strength, hardness, and wear resistance.
Manufactured under strict ASTM A194 Grade 6 standards, these heat-treatable martensitic fasteners provide reliable load-bearing performance and anti-galling behavior in moderate corrosive environments. As a trusted SS 410 Nuts Exporter, Aurum Overseas supplies fully certified bolting solutions across the USA, Germany, UK, UAE, Saudi Arabia, and Qatar.
SS 410 Nuts Specifications
| Parameter | Specification / Technical Range |
|---|---|
| Material Grade | Stainless Steel 410 / Grade B6 |
| UNS Number | UNS S41000 |
| Werkstoff Number | 1.4006 |
| Manufacturing Standards | ASTM A194 Grade 6, ASME SA194 Grade 6, DIN 934, ISO 4032, BS |
| Size Range | M3 to M100 | 3/16" to 4" | Custom Sizes Available |
| Length Range | 3 mm to 200 mm | Custom Lengths Available |
| Thread Configuration | ASME B1.1 2A/3A - 2B/3B Unified (UNC, UNF) & B1.13M 6h-6G Metric |
| Special Fastener Formats | SS 410 Hex Head Nuts, SS 410 Square Nuts, SS 410 T Nuts, SS 410 Eye Nuts |
| Heat Treatment Conditions | Annealed, Hardened & Tempered (Heat Treated) |
| Surface Finishes | Bright Polished, Passivated, Black Oxide, Zinc Plated |
| Certifications | EN 10204 3.1 Material Test Certificate |

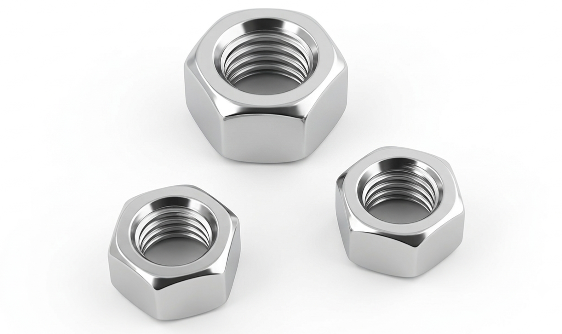

What are Stainless Steel 410 Nuts?
- SS 410 (UNS S41000 / 1.4006): A hardenable martensitic stainless steel containing 11.5% to 13.5% chromium. It combines high mechanical yield strength, high hardness through heat treatment, and basic corrosion resistance for stress-heavy mechanical assemblies.
- ASTM A194 Grade 6: The high-temperature, high-pressure specification governing UNS S41000 Nuts, ensuring certified tensile performance and tempering stability in valve, pump, and turbine hardware.
SS 410 Technical Properties & Composition
The chemical composition and mechanical properties of SS 410 are specifically calibrated to deliver superior hardness, high-strength thread integrity, and reliable wear resistance across demanding mechanical and heat-treated service conditions.
Chemical Composition of SS 410 / B6 Nuts (%)
| Element | Percentage |
|---|---|
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 1.0 max |
| Silicon (Si) | 1.0 max |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.030 max |
| Chromium (Cr) | 11.5 - 13.5 |
| Nickel (Ni) | 0.75 min |
Mechanical Properties of SS 410 / B6 Nuts
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness Rockwell B (HR B) max | Hardness Brinell (HB) max |
|---|---|---|---|---|---|
| SS 410 | 480 | 275 | 16 | 95 | 201 |
Equivalent Grades of SS 410 / B6 Nuts
| Standard | Werkstoff Nr. | UNS | JIS | EN |
|---|---|---|---|---|
| SS 410 | 1.4006 | S41000 | SUS 410 | X10Cr13 |
Why Industries Prefer SS 410 Series Nuts
Engineers choose UNS S41000 Nuts for high-load, abrasive industrial environments where austenitic stainless steels (like 304 or 316) are too soft and subject to thread galling or surface wear.
Because SS 410 is martensitic, it can be quenched and tempered to significantly elevate yield strength and surface hardness. As a certified SS 410 Nuts Supplier, Aurum Overseas delivers these high-strength fasteners to steam turbine manufacturers, valve producers, and mine equipment builders globally.
Types of SS 410 Series Nuts
Aurum Overseas supplies a comprehensive range of stainless steel nut configurations manufactured according to standard DIN, ASME, and ISO dimensional tolerances for multiple engineering assemblies.
SS 410 Hex Head Nuts
SS 410 Square Nuts
SS 410 Lock Nuts
SS 410 Eye Nuts
SS 410 Wing Nuts
SS 410 T Nuts
SS 410 Panel Nuts
SS 410 Coupling Nuts
SS 410 Heavy Hex Nuts
Key Advantages of UNS S41000 Series Nuts
Heat-Treatable Hardness
Martensitic structure allows thermal hardening to deliver high wear and abrasion resistance on thread surfaces.
High Yield & Tensile Strength
Yield strength starting at 275 MPa (and higher when quenched/tempered), providing superior clamping force under mechanical loads.
Resists Thread Galling
Higher surface hardness prevents friction-welding and thread seizure during high-speed power wrench installation.
Magnetic Characteristics
Naturally magnetic in all heat-treated conditions, aiding magnetic sorting and alignment in automated assembly lines.
Cost-Effective Corrosion Resistance
Provides reliable protection in fresh water, mild steam, and non-aggressive chemical environments without expensive alloying additives.
Key Applications of SS UNS S41000 Series Nuts
Our stainless steel 410 nuts are deployed globally in power generation equipment, pump and valve manufacturing, petroleum refining, and heavy mining machinery assemblies.
| Industry Sector | Primary Fastener Application |
|---|---|
| Power Generation | Steam turbine casings, boiler mountings, and high-pressure steam valve bolting |
| Pump & Valve Manufacturing | Internal trim bolting, gland packing studs, and pump casing assembly fasteners |
| Petroleum Refining | Fractionation column internals and non-sour gas piping flanges |
| Mining & Heavy Machinery | Conveyor hardware, crushing equipment bolts, and vibrating screen fasteners |
| Automotive & Aerospace | High-stress engine brackets and exhaust manifold structural fasteners |
SS 410 Nuts vs SS 304 Nuts
When selecting the ideal stainless fastener grade for your assembly, understanding the structural and performance differentials between SS 410 and SS 304 is crucial.
| Comparison Factor | SS 410 Nuts | SS 304 Nuts |
|---|---|---|
| Microstructure | Martensitic (Hard, high strength) | Austenitic (Ductile, non-magnetic) |
| Heat Treatment | Can be hardened and tempered by heat treatment | Cannot be hardened by heat treatment |
| Hardness & Strength | Significantly higher yield strength and wear resistance | Moderate strength, higher stretch and elongation |
| Corrosion Resistance | Moderate (Best for steam, mild air, and fresh water) | High (Protects against industrial atmosphere and chemicals) |
| Magnetism | Fully Magnetic in all conditions | Non-Magnetic (may become slightly magnetic when cold worked) |
| Detailed Specifications | Current Page | View SS 304 Nuts Specs → |
Quality Testing & Inspection
Aurum Overseas maintains strict inspection protocols to ensure every order shipped as an SS 410 Nuts Exporter meets international structural standards.
| Test / Inspection Standard | Technical Verification Scope |
|---|---|
| Positive Material Identification (PMI) | Spectroscopic alloy testing verifying Cr, Fe, and Mn percentages |
| Hardness Verification | Brinell and Rockwell hardness testing post heat treatment |
| Dimensional Inspection | Pitch, thread profile, and flange concentricity per ASME B18.2.2 |
| Mechanical Proof Load Testing | Verifying yield and tensile load capacities per ASTM A194 Grade 6 |
| Certifications | Full material test certificates per EN 10204 3.1 |
Global Export Markets
As an international SS 410 Nuts Exporter, Aurum Overseas delivers securely packaged, export-ready fasteners to industrial buyers worldwide.
USA
Canada
Mexico
Germany
United Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
ASTM A194 Grade 6 specifies martensitic SS 410 nuts heat-treated for high-strength, high-temperature service. They offer superior wear resistance and high tensile strength in power plant and valve applications.
Yes, UNS S41000 nuts are martensitic stainless steel and are magnetic in all conditions (annealed, hardened, or tempered).
Yes, unlike 300-series stainless steels, SS 410 can be quenched and tempered to significantly increase its surface hardness and tensile strength.
Aurum Overseas manufactures SS 410 Hex Head Nuts, SS 410 Square Nuts, SS 410 T Nuts, and heavy SS 410 Eye Nuts tailored to engineering specifications.
Yes, Aurum Overseas regularly exports fully certified SS 410 fasteners to project sites across the USA, European hubs (Germany, UK, France), and GCC nations (UAE, Saudi Arabia, Qatar).
Yes, all shipments from Aurum Overseas include complete EN 10204 3.1 Mill Test Certificates detailing heat treatment logs, chemical analysis, and mechanical hardness test results.
Contact Aurum Overseas
Aurum Overseas provides quick quotes, full mill test reports, and reliable shipping for all your martensitic fastener demands.
Contact our sales department for pricing and technical assistance.
