Inconel 600 Round Bars Supplier & Exporter
For high-temperature furnaces, nuclear systems, and chemical plants requiring high stability under thermal cycling, Aurum Overseas delivers precision round bars. As a premier Inconel 600 Round Bars Supplier and Exporter, we manufacture nickel-chromium alloy bars that resist oxidation up to 1150°C (2100°F) and remain strong in severe environments.

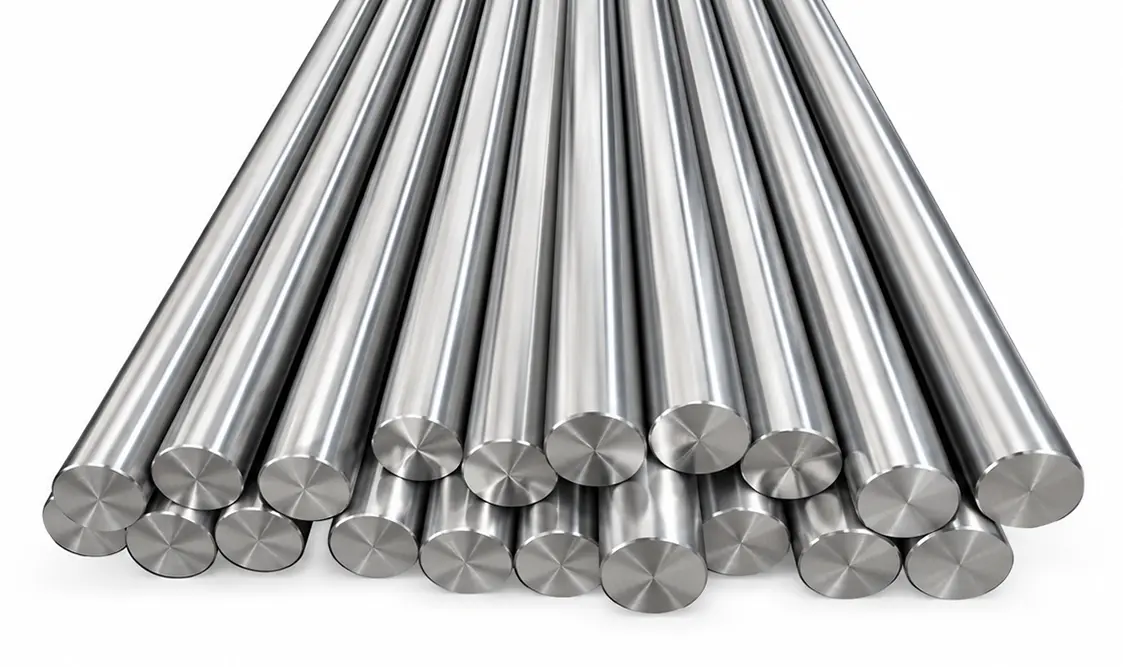

-inconel.webp "Inconel 600 Round Bars")
We supply UNS N06600 Round Bars to ASTM B166, ASME SB166, and DIN 17752 standards in metric and imperial sizes. Our inventory includes Inconel 600 Bright Bars for CNC machining and heavy Inconel 600 Forged Bars for structural pressure parts, all backed by EN 10204 3.1 MTR certifications.
We export these high-nickel alloy bars across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
Technical Specifications
| Technical Parameter | Standard Specification |
|---|---|
| Material Grade | Inconel 600 / Nickel Alloy 600 |
| UNS Designation | UNS N06600 |
| Manufacturing Standards | ASTM B166, ASME SB166, ASTM B564, ASME SB564, DIN 17752, EN 10095 |
| Diameter Capability | Imperial: 1/8" to 20" NB | Metric: 3 mm to 500 mm |
| Length Options | 3 Meters, 6 Meters, Random Lengths, Custom Cut-to-Length |
| Dimensional Tolerances | ISO h8, h9, h10, h11, k12, DIN 1013 / EN 10060 |
| Supply Conditions | Annealed, Solution Annealed, Cold Drawn, Centerless Ground, Hot Rolled, Rough Turned, Forged |
Mechanical Properties & Chemical Composition
Equivalent Grades of Inconel 600 Round Bars
| Standard | Werkstoff Nr. | UNS | JIS | EN |
|---|---|---|---|---|
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NiCr15Fe |
Chemical Composition of Inconel Alloy 600
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 0.50 max |
| Sulfur (S) | 0.015 max |
| Copper (Cu) | 0.50 max |
| Iron (Fe) | 6.00 – 10.00 |
| Nickel (Ni) | 72.00 min |
| Chromium (Cr) | 14.00 – 17.00 |
Mechanical Properties of Nickel Alloy 600 Round Bars
| Property | Metric Value | Imperial Value |
|---|---|---|
| Ultimate Tensile Strength | 655 MPa min | 95,000 psi min |
| Yield Strength (0.2% Offset) | 310 MPa min | 45,000 psi min |
| Elongation (%) | 40% min | 40% min |
| Density | 8.47 g/cm³ | 0.306 lb/in³ |
| Melting Point | 1413°C | 2580°F |
Types of Inconel 600 Round Bars
Aurum Overseas supplies Inconel 600 round bars in precision bright and heavy forged conditions for high-temperature and corrosive industrial applications.

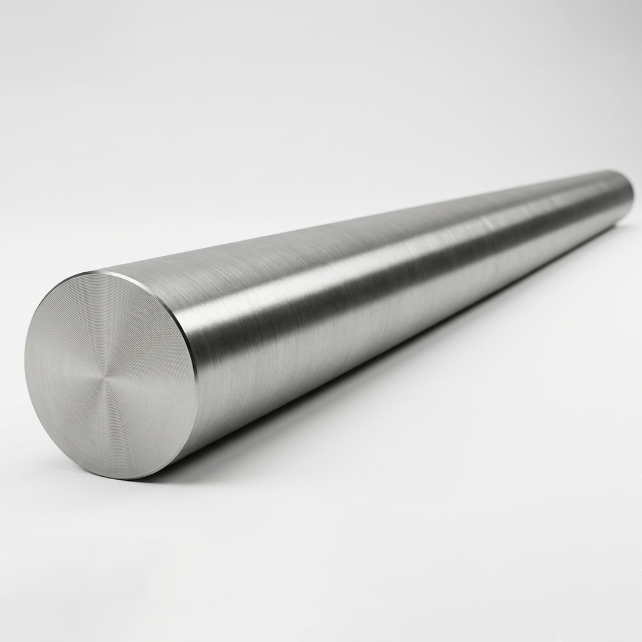

Inconel 600 Bright Bars

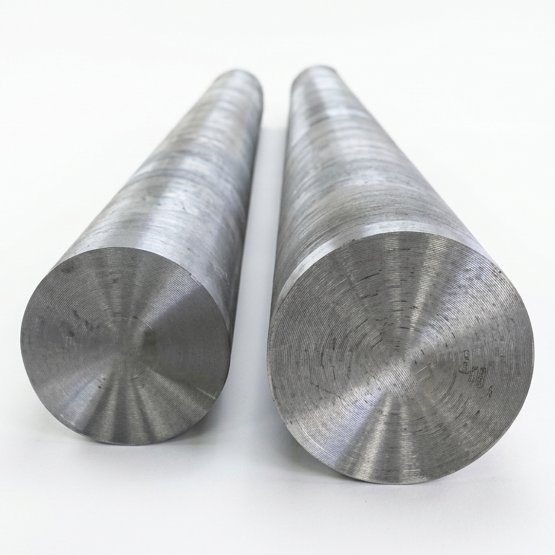

Inconel 600 Forged Bars
Key Advantages of UNS N06600 Round Bars
Resists Stress Cracking
High nickel content prevents cracking and damage caused by salt water, harsh chemicals, and aggressive industrial liquids.
Handles Extreme Heat
Built to withstand continuous temperatures up to 1150°C (2100°F) without burning, rusting, or weakening.
Fights Harsh Gases
Resists damage from hot dry chlorine gas and acidic vapors during chemical processing.
Strong in Any Temperature
Stays strong and tough whether used in freezing cryogenic conditions or ultra-hot environments.
Non-Magnetic
Remains naturally non-magnetic across all temperatures, making it safe for delicate electronics and sensors.
Key Applications of Inconel 600 Round Bars
| Industry Sector | Typical Components | Operating Conditions |
|---|---|---|
| Industrial Furnaces | Heat baskets, furnace rollers, and heating tubes | Extreme heat cycling and carbon-rich furnace gas |
| Chemical Processing | Evaporators, chemical valves, mixing shafts, and distillation units | Hot organic acids, caustic solutions, and chlorine gas |
| Nuclear Power Plants | Control rod shafts, steam generator parts, and reactor bolting | High-pressure water, intense heat, and radiation |
| Aerospace & Jets | Jet engine igniter tubes, exhaust parts, and lock wire stock | High-speed hot exhaust gases and heavy engine vibrations |
| Pulp & Paper Processing | Distillation towers, heater tubes, and chemical recovery equipment | Strong acidic vapors and hot liquor solutions |
Quality Testing & Inspection
As a leading Inconel 600 Round Bars Exporter, Aurum Overseas subjects every shipment to strict quality verification:
- Positive Material Identification (PMI): Spectrometer testing verifies exact chemical element ratios (Ni ≥ 72.00%, Cr 14–17%, Fe 6–10%).
- Ultrasonic Testing (UT): ASTM A388 testing checks heavy forged bars for internal voids, cracks, or flaws.
- Mechanical & Hardness Testing: Tensile strength, yield, elongation, and Rockwell/Brinell hardness verified per ASTM B166.
- Dimensional & Surface Checks: Precision tools inspect straightness, roundness, outer diameter tolerances, and surface roughness (Ra).
Global Export Markets
As an established Inconel 600 Round Bars Exporter, Aurum Overseas supplies fully certified UNS N06600 Round Bars to global energy and thermal engineering centers:
USA
Canada
Mexico
Germany
United
Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi
Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
The high nickel-chromium content in UNS N06600 creates a tight, adherent oxide film that resists oxidation and carburization up to 1150°C (2100°F) while retaining mechanical load-bearing capacity.
Inconel 600 Bright Bars are cold drawn or centerless ground to tight dimensional tolerances (ISO h9–h11) for precise machining, whereas Inconel 600 Forged Bars are hot-worked to produce dense internal grain structures in larger diameters.
Yes. With a minimum nickel content of 72.00%, Inconel 600 is virtually immune to chloride-induced stress-corrosion cracking that typically attacks standard austenitic stainless steels.
Due to its high work-hardening rate, machining UNS N06600 requires rigid tooling setups, slow cutting speeds, positive feed rates, and heavy sulfurized coolants to prevent tool chatter and thermal buildup.
