Monel K500 Square & Hex Bars Overview
Monel K500 Bars are supplied globally by Aurum Overseas, an established stockist and exporter. Our UNS N05500 Square Bars and UNS N05500 Hexagonal Bars blend nickel-copper corrosion resistance with aluminum-titanium strength, fully meeting ASTM B865 and DIN 17752 standards.
We deliver age-hardened and solution-annealed Alloy K500 Bars and Monel K500 Bars tailored for heavy-duty industrial environments. Serving as a reliable Monel K500 Square Bars and Hex Bars Exporter, our inventory includes cold-drawn hex sections, turned square stock, and hot-forged bars manufactured to close tolerances for easy machining.
Engineered for high-stress sour gas environments, subsea wellhead tooling, and drill collars, our non-magnetic bars deliver high tensile yield strength. Contact Aurum Overseas today for competitive pricing, technical support, and certified mill test reports.
Technical Specifications
| Technical Parameter | Specification Standard |
|---|---|
| Material Specifications | ASTM B865, ASME SB865, QQ-N-286, DIN 17752, BS 3076 NA18 |
| UNS Designation | UNS N05500 |
| Across-Flats (AF) Size Range | 6.0 mm to 150.0 mm (1/4" to 6" Square & Hexagon Profiles) |
| Length Options | 1,000 mm to 6,000 mm, Custom Sawing and Cut-to-Length |
| Surface Finishes | Cold Drawn, Centerless Ground, Turned, Hot Rolled, Age Hardened |
| Heat Treatment Condition | Solution Annealed & Precipitation Hardened (Age Hardened at 580 °C – 590 °C) |
| Dimensional Tolerances | ASTM B865 / ISO 286-2 (h9, h10, h11 profile tolerances) |
| HSN Code | 75052200 |
Chemical Composition & Mechanical Properties
Equivalent Standards
| Standard / Grade | Werkstoff Nr. | UNS Designation | EN / DIN |
|---|---|---|---|
| Monel K500 | 2.4375 | N05500 | NiCu30Al3Ti |
Chemical Composition (%)
| Element | Specification Range (ASTM B865 UNS N05500) |
|---|---|
| Nickel (Ni) | 63.0 min |
| Copper (Cu) | 27.0 – 33.0 |
| Aluminum (Al) | 2.30 – 3.15 |
| Titanium (Ti) | 0.35 – 0.85 |
| Iron (Fe) | 2.0 max |
| Manganese (Mn) | 1.5 max |
| Carbon (C) | 0.25 max |
| Silicon (Si) | 0.5 max |
| Sulfur (S) | 0.010 max |
Mechanical & Physical Properties (Age Hardened Condition)
| Property Parameter | Metric Units | Imperial Units |
|---|---|---|
| Density | 8.44 g/cm³ | 0.305 lb/in³ |
| Melting Point | 1315 – 1350 °C | 2400 – 2460 °F |
| Tensile Strength (Min) | 1100 MPa | 160,000 Psi (160 ksi) |
| Yield Strength (0.2% Offset, Min) | 790 MPa | 115,000 Psi (115 ksi) |
| Elongation (Min) | 20 % | 20 % |
| Hardness (Rockwell C) | 27 – 35 HRC | 27 – 35 HRC |
Types of Monel K500 Bars: Hexagonal & Square Profiles
Aurum Overseas supplies Monel K500 (UNS N05500) bars in precision hexagonal and square profiles for high-strength marine and oilfield components.

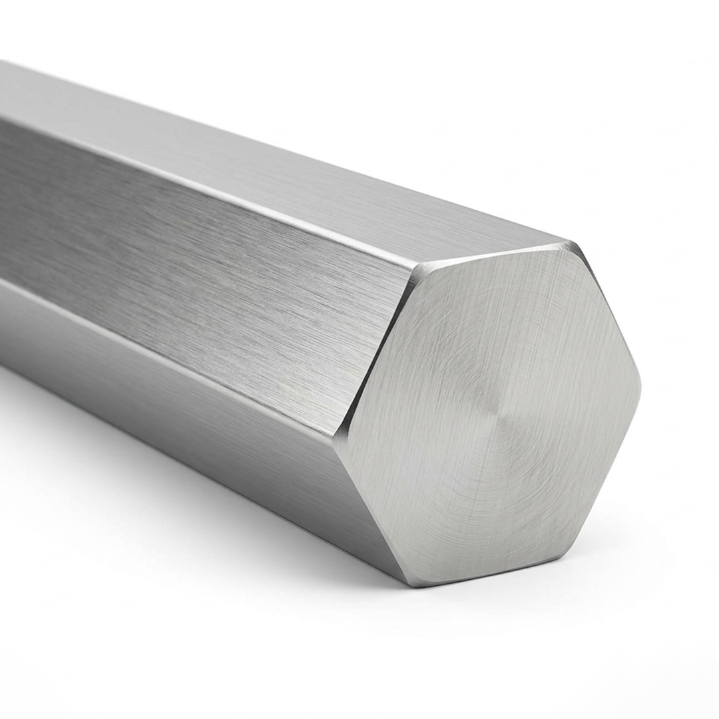

Monel K500 Hex Bars
Monel K500 Square Bars

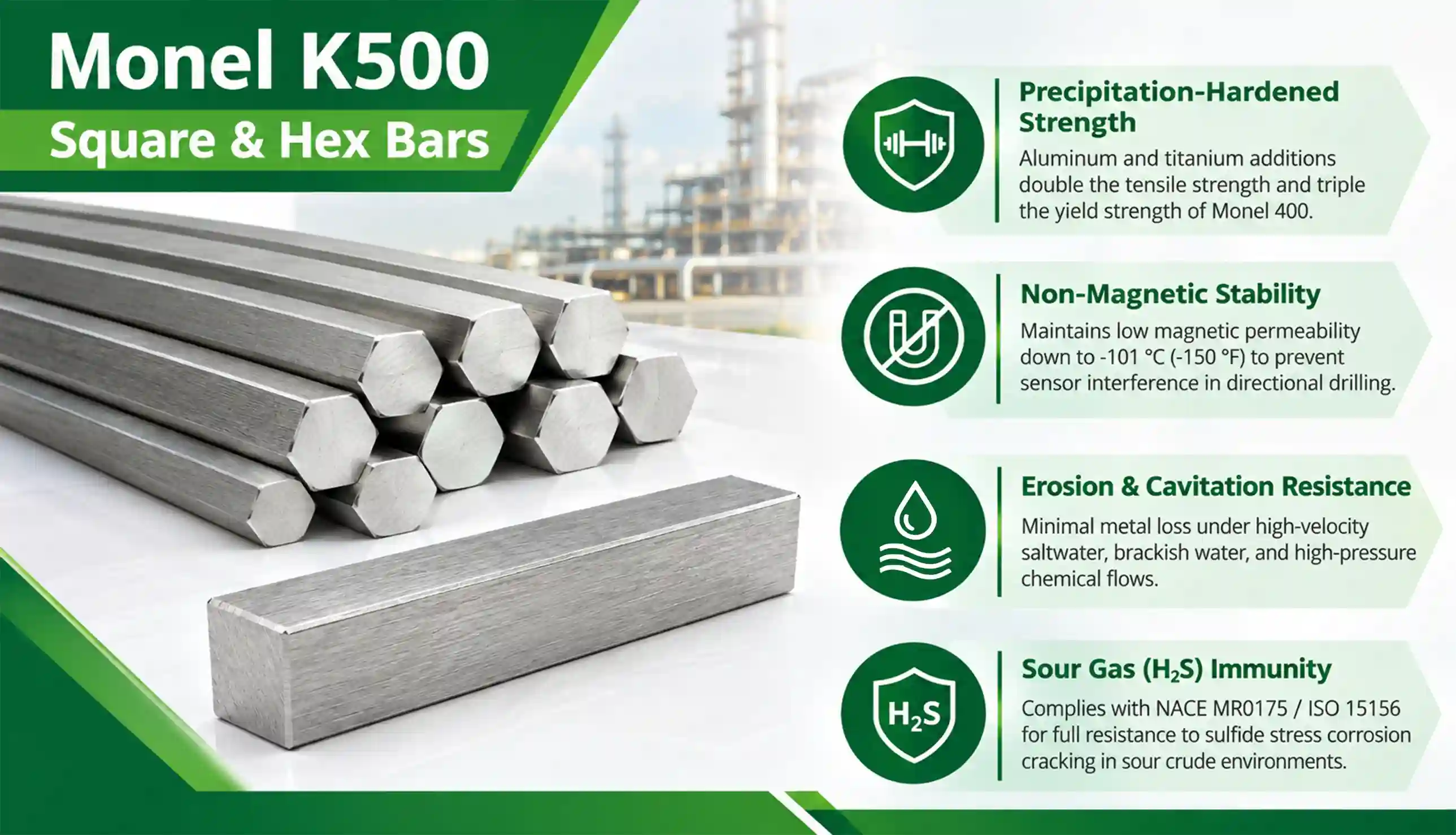

Key Advantages of Monel K500 Square & Hex Bars
Precipitation-Hardened Strength
Aluminum and titanium additions double the tensile strength and triple the yield strength of Monel 400.
Non-Magnetic Stability
Maintains low magnetic permeability down to -101 °C (-150 °F) to prevent sensor interference in directional drilling.
Erosion & Cavitation Resistance
Minimal metal loss under high-velocity saltwater, brackish water, and high-pressure chemical flows.
Sour Gas (H₂S) Immunity
Complies with NACE MR0175 / ISO 15156 for full resistance to sulfide stress corrosion cracking in sour crude environments.
Key Applications of Monel K500 Square & Hex Bars
| Industry | Applications | Operational Benefit |
|---|---|---|
| Oil & Gas Downhole | Drill collars, subsea housings, valve stems | Prevents H₂S sour gas cracking with zero magnetic interference. |
| Marine Propulsion | Pump shafts, impellers, propeller hex bolts | Withstands heavy torsional saltwater fatigue without mechanical shear. |
| Chemical Processing | Valve trim, mixer hex shafts, fasteners | Prevents thread galling and erosion under extreme operational stress. |
| Aerospace & Defense | Structural pins, ordnance actuators, hex fittings | Maintains high tensile strength across temperatures with zero magnetic trace. |
Quality Testing & Inspection
As a qualified Monel K500 Square Bars Exporter and Monel K500 Hex Bars Exporter, Aurum Overseas conducts rigorous testing on all material batches:
- Chemical Verification & PMI: 100% XRF spectral analysis verifying Al (2.30–3.15%) and Ti (0.35–0.85%) precipitation elements.
- Tensile & Hardness Inspection: Room-temperature yield, tensile, elongation, and Rockwell C hardness testing verifying full aging response per ASTM B865.
Global Export Markets
As an established Monel K500 Square & Hex Bar Exporter, Aurum Overseas supplies fully certified ASTM B865 UNS N05500 bars to global oil & gas, marine, chemical processing, and aerospace facilities:
USA
Canada
Mexico
Germany
United Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
Monel K500 incorporates aluminum and titanium to enable precipitation hardening, resulting in approximately double the tensile strength and triple the yield strength of standard Monel 400 while retaining similar corrosion resistance.
Yes. Monel K500 remains non-magnetic at room temperature and retains low magnetic permeability down to sub-zero temperatures, making it suitable for drill collars and sensitive electronic housings.
All deliveries from Aurum Overseas are accompanied by comprehensive EN 10204 3.1 Mill Test Certificates verifying heat chemistry, mechanical properties, hardness levels, and NDT clearance.
Contact Aurum Overseas
Contact a dedicated Monel K500 Square Bars Supplier and Monel K500 Hex Bars Supplier for certified high-strength alloy bar stock, custom cutting services, and prompt international delivery.
