Inconel X750 Threaded Bars Overview
Aurum Overseas is a premier Inconel X750 Threaded Bars Supplier and trusted Inconel X750 Threaded Bars Exporter, offering precipitation-hardenable nickel-chromium fasteners made to ASTM B637 standards. Our ready stock of ASTM B637 UNS N07750 Threaded Bars holds strong under extreme mechanical tension and thermal stress.

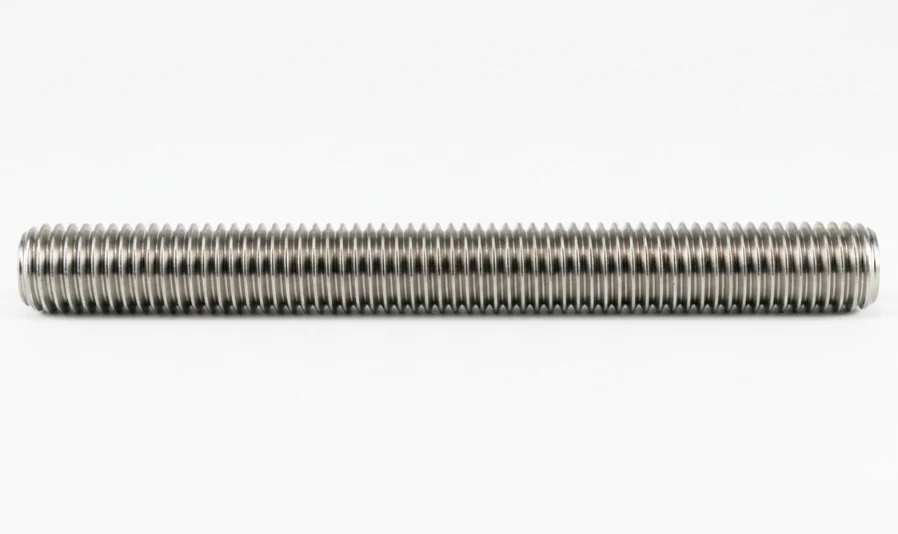

-threaded-bar.webp "Inconel X750 Threaded Rods")
Precipitation-hardened with Aluminum (0.40–1.00%) and Titanium (2.25–2.75%), high-strength UNS N07750 Threaded Rods deliver high creep-rupture strength up to 700 °C (1300 °F). Furthermore, durable Inconel X750 Threaded Rods maintain spring relaxation resistance and structural tightness under high cyclic loads.
Built for gas turbine bolting, nuclear reactor core components, rocket engine thrust chambers, and high-pressure steam valves, our full-thread studs keep critical joints tight and secure. Contact Aurum Overseas for quick factory quotes, custom length cutting, and fast global shipping.
Technical Specifications
| Technical Parameter | Specification Standard |
|---|---|
| Material Specifications | ASTM B637, ASME SB637, AMS 5667, AMS 5671, EN 10204 3.1 |
| UNS Designation | UNS N07750 (Inconel X-750 / Alloy X-750) |
| Thread Size Range | M6 to M100 (1/4" to 4.0" Nominal Diameter) |
| Thread Profiles | UNC, UNF, UNEF, Metric Coarse, Metric Fine, Acme Threads |
| Length Options | 1,000 mm, 2,000 mm, 3,000 mm, Custom Cut-to-Length All-Thread Studs |
| Thread Class / Fit | Class 2A / 3A (Imperial) & 6g / 6h (Metric Profile Tolerances) |
| HSN Code | 75089090 |
Chemical Composition & Mechanical Properties
Equivalent Standards
| Grade | Standard | W.Nr. | UNS |
|---|---|---|---|
| Inconel X750 | ASTM B637 | 2.4669 | N07750 |
Chemical Composition (%)
| Chemical Element | Inconel X750 |
|---|---|
| Nickel (Ni) | 70.00 min |
| Chromium (Cr) | 14.00 – 17.00 |
| Titanium (Ti) | 2.25 – 2.75 |
| Aluminum (Al) | 0.40 – 1.00 |
| Carbon (C) | 0.08 max |
| Manganese (Mn) | 1.00 max |
| Copper (Cu) | 0.50 max |
| Silicon (Si) | 0.50 max |
| Sulfur (S) | 0.01 max |
Mechanical & Physical Properties
| Property Parameter | Value / Compliance Boundary |
|---|---|
| Density | 8.28 g/cm³ |
| Melting Point | 1430 °C (2600 °F) |
| Tensile Strength (Min) | 1267 MPa |
| Yield Strength (0.2% Offset, Min) | 868 MPa |
| Elongation (Min) | 25 % |
Key Advantages
High Yield Strength
Age-hardening with Titanium and Aluminum provides over 868 MPa yield strength for heavy tension bolting.
Resists Heat Relaxation
Holds spring tightness and clamping force under continuous high heat without loosening or stretching.
Corrosion & Oxidation Resistance
High 70% Nickel and 14–17% Chromium prevent scaling and environmental cracking in hot steam lines.
Smooth & Secure Threading
Precision roll-threaded construction prevents thread stripping and jamming under heavy installation torque.
Quality Testing & Inspection
Aurum Overseas subjects every order to strict quality control processes to ensure compliance with international fastener standards and client specifications:
- Chemical Heat Verification (PMI): Spectro / XRF material analysis verifying exact elemental chemistry against ASTM standards.
- Thread Pitch & Gage Inspection: Go/No-Go thread gage and optical comparator testing ensuring class 2A/3A and 6g pitch tolerances.
- Mechanical Property Certification: Factory batch verification of tensile, yield strength, and elongation supported by EN 10204 3.1 MTRs.
- Optional Third-Party Testing: Ultrasonic (UT), Dye Penetrant (DPI), or Proof Load testing provided upon client project request.
Global Export Markets
As an established Inconel X750 Threaded Bars Exporter, Aurum Overseas supplies fully certified ASTM B637 UNS N07750 threaded rods to global aerospace, nuclear, gas turbine, and high-temperature industrial facilities:
USA
Canada
Mexico
Germany
United Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
Inconel X750 gets its high strength through age-hardening heat treatments, where Titanium and Aluminum precipitate to form a gamma prime matrix phase that locks the structure against mechanical deformation.
Yes. Inconel X750 maintains good ductility, toughness, and mechanical strength at sub-zero and cryogenic temperatures while resisting brittle fracture.
There is no physical or technical distinction. Both terms refer to continuously threaded bar stock used for stud bolting, structural anchoring, and flange clamping.
Contact Aurum Overseas
Contact Aurum Overseas, a trusted Inconel X750 Threaded Bars Supplier & Exporter, for certified high-temperature alloy threaded rods, custom length sawing, and fast international delivery.
