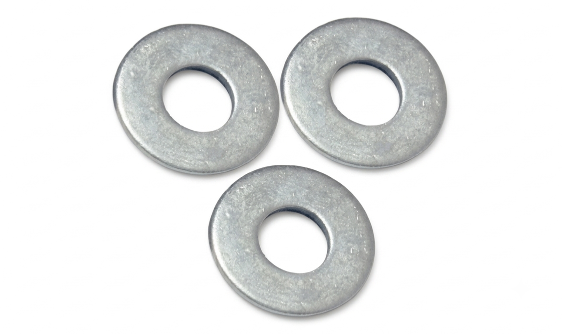

Hastelloy X Washers Suppliers & Exporters
If your gas turbine combustors, industrial furnaces, or pyrolysis equipment require high-temperature strength and oxidation resistance, you've reached the right source. As a premier Hastelloy X Washers Supplier and Exporter, Aurum Overseas manufactures precision Plain, Spring, Lock, Square, and Conical fasteners to ASME B18.21.1, DIN 125, and ISO 7089 standards.
Our Alloy X Washers and UNS N06002 Washers feature a Ni-Cr-Fe-Mo matrix engineered to retain high tensile strength and creep resistance up to 1200°C (2200°F). Supplied with full EN 10204 3.1 MTR certifications, our Hastelloy X fasteners are fully stocked for immediate dispatch.
We export these washers to key global markets across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
Technical Specifications
| Parameter | Technical Specification / Standard Range |
|---|---|
| Material Grade | Hastelloy X / Alloy X |
| Forging Specification | ASTM B572 / ASME SB572 |
| UNS Designation | UNS N06002 |
| Manufacturing Standards | ASTM B435, ASME SB435, ASTM B572, ASME SB572 |
| Dimensional Specifications | ASME B18.21.1, DIN 125 A/B, DIN 127, DIN 9021, ISO 7089, ISO 7090 |
| Washer Types | Plain Washers, Spring Washers, Lock Washers, Square Washers, Conical Washers |
| Size Capability | Imperial: #4 to 4" NB | Metric: M3 to M100 |
| Thickness Range | 0.5 mm to 12 mm |
| Hardness Limit | 241 HB max / 100 HRB max |
Technical Properties & Chemical Composition
Equivalent Grades of Hastelloy X Washers
| STANDARD | WERKSTOFF NR. | UNS | TRADEMARK |
|---|---|---|---|
| Hastelloy X | 2.4655 | N06002 | Alloy X |
Chemical Composition of Alloy X Washers
| Element | Percentage (%) |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.50 – 23.00 |
| Iron (Fe) | 17.00 – 20.00 |
| Molybdenum (Mo) | 8.00 – 10.00 |
| Cobalt (Co) | 0.50 – 2.50 |
| Tungsten (W) | 0.20 – 1.00 |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 1.00 max |
| Carbon (C) | 0.05 – 0.15 |
| Aluminum (Al) | 0.50 max |
| Copper (Cu) | 0.50 max |
| Titanium (Ti) | 0.15 max |
| Phosphorus (P) | 0.040 max |
| Sulfur (S) | 0.030 max |
| Boron (B) | 0.01 max |
Mechanical Properties of Alloy X Washers
| Property | Metric Value | Imperial Value |
|---|---|---|
| Ultimate Tensile Strength | 750 MPa min | 108 ksi min |
| Yield Strength (0.2% Offset) | 360 MPa min | 52 ksi min |
| Elongation (%) | 35% min | 35% min |
| Density | 9.13 g/cm³ | 0.33 lb/in³ |
| Melting Range | 1260°C – 1355°C | 2300°F – 2470°F |
Types of Hastelloy X Washers
Aurum Overseas supplies a comprehensive range of Hastelloy X washer configurations manufactured according to standard DIN, ASME, and ISO dimensional tolerances for multiple engineering assemblies.
Hastelloy X Plain Washers
Hastelloy X Spring Washers
Hastelloy X Lock Washers
Hastelloy X Square Washers
Hastelloy X Conical Washers
Key Advantages
High-Temperature Oxidation Resistance
Forms a tight, protective oxide scale that resists spalling and degradation in continuous combustion atmospheres up to 1200°C.
Carburization & Nitriding Defense
Balanced iron, chromium, and nickel composition provides excellent resistance to carbon and nitrogen absorption in industrial heat-treat atmospheres.
Creep & Stress-Rupture Strength
Maintains structural joint integrity under prolonged high-stress, high-temperature thermal exposure.
Long-Term Cost Savings
High resistance to thermal fatigue and distortion reduces component replacements and maintenance costs in extreme heat environments.
Key Applications of Hastelloy X Washers
| Industry Sector | Application | Operating Environment |
|---|---|---|
| Gas Turbine Engines | Combustor cans, transition ducts, flame holders, and tailpipes | High-velocity burning gases at extreme operating temperatures |
| Industrial Furnaces | Retorts, baffle plates, furnace muffles, and structural support bolting | Carburizing, nitriding, and highly oxidizing heat-treat environments |
| Petrochemical Processing | Pyrolysis tubing flanges, steam reformer outlets, and catalyst grids | Thermal cracking operations exposed to high carbon and sulfur loads |
| Aerospace Exhaust Systems | Afterburner components, tail cones, and thermal shield fasteners | Dynamic thermal shock and severe vibrational loads |
| Nuclear Engineering | High-temperature gas-cooled reactor (HTGR) core structural joints | Helium cooling loops exposed to elevated operating temperatures |
Quality Testing & Inspection
As a certified Hastelloy X Washers Supplier, Aurum Overseas subjects all production batches to strict quality control:
- Positive Material Identification (PMI): Spectrometric analysis verifies precise elemental proportions including Ni, Cr, Fe, Mo, and W fractions.
- High-Temperature Mechanical Verification: Tensile and yield tests verify compliance with high-temperature mechanical property requirements.
- Microstructural Grain Audit: Metallographic evaluation confirms optimum solution-annealed structure for peak thermal stability.
- Dimensional Conformance: Precision optical comparator checks ensure tight adherence to ASME, DIN, and ISO specifications.
Global Export Markets
Aurum Overseas supplies fully certified Hastelloy X Washers to industrial projects across:
USA
Canada
Mexico
Germany
United
Kingdom
France
Italy
Netherlands
Norway
UAE
Saudi
Arabia
Qatar
Kuwait
Oman
Singapore
Malaysia
Australia
Frequently Asked Questions
Hastelloy X offers an exceptional balance of high-temperature creep strength, oxidation resistance, and fabricability at continuous service temperatures up to 1200°C (2200°F).
Yes. Alloy X is highly resistant to carburization and nitriding, making it suitable for industrial furnace components and heat-treating hardware.
While optimized for extreme high-temperature service, Hastelloy X retains good ductility and impact strength at sub-zero temperatures.
Our Hastelloy X washers are supplied in the solution heat-treated condition (1177°C followed by rapid quenching) for optimal high-temperature performance.
All shipments include complete EN 10204 3.1 Mill Test Reports covering heat chemistry, tensile properties, hardness values, and PMI verification.
