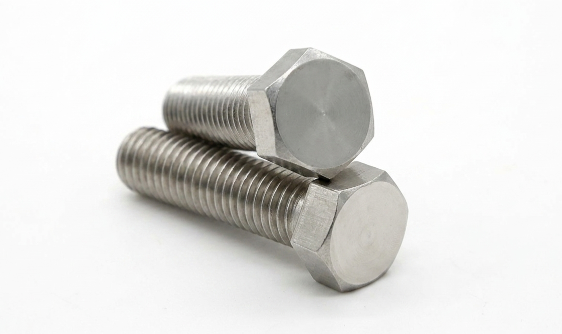

Super Duplex S32750 Bolts Supplier & Exporter
Super Duplex UNS S32750 bolts are high-performance fastening components engineered for extreme mechanical stress and chloride-rich corrosion environments. These bolts are widely used in offshore oil & gas platforms, desalination plants, chemical processing systems, marine structures, and high-pressure piping assemblies where conventional stainless steel fasteners fail under combined load and corrosion attack.
As a Super Duplex S32750 bolts supplier and exporter, we deliver precision-manufactured hex bolts and heavy hex bolts compliant with ASTM A1082, DIN, ISO, and ASME standards for Europe, US, and Gulf industrial procurement systems. Each bolt is manufactured with controlled ferrite-austenite microstructure, ensuring long-term structural integrity under cyclic loading and seawater exposure.
Super Duplex S32750 Bolts – High-Strength Fastening Solution for Critical Offshore & Industrial Applications
Super Duplex S32750 bolts are designed for structural fastening systems operating in highly aggressive environments where corrosion resistance and mechanical strength must work together. The alloy is engineered with approximately equal ferritic and austenitic phases, giving it twice the yield strength of conventional stainless steels while maintaining excellent resistance to chloride-induced stress corrosion cracking.
These bolts are primarily used in offshore platforms, subsea equipment frames, pressure vessels, heat exchangers, and desalination systems. The material’s high PREN value (≥40) ensures resistance against pitting and crevice corrosion in seawater and acidic environments, making it suitable for long-term exposure in marine and chemical industries.
Engineering Role of S32750 Bolts in High-Pressure Systems
In high-pressure flange connections, bolts act as the primary load-retaining element preventing joint separation under internal pressure fluctuations. S32750 bolts provide superior clamp load retention compared to standard duplex and stainless steel grades, reducing the risk of gasket failure and leakage in critical pipelines.
Why UNS S32750 Outperforms Standard Duplex and 316 Stainless Steel Bolts
Compared to SS 316L, S32750 offers significantly higher mechanical strength and chloride resistance. Unlike standard duplex grades, it maintains stability under higher stress levels without rapid corrosion propagation in seawater or sour gas environments. This makes it a preferred choice for offshore and high-risk industrial applications.
PREN ≥ 40 Corrosion Resistance for Chloride and Seawater Environments
The high PREN (Pitting Resistance Equivalent Number) ensures resistance to localized corrosion, especially in seawater cooling systems, desalination plants, and offshore splash zones where chloride concentration is extremely aggressive.
Types of Super Duplex S32750 Bolts We Supply
We supply a complete range of structural bolt types designed for industrial fastening systems where strength, corrosion resistance, and dimensional accuracy are critical.

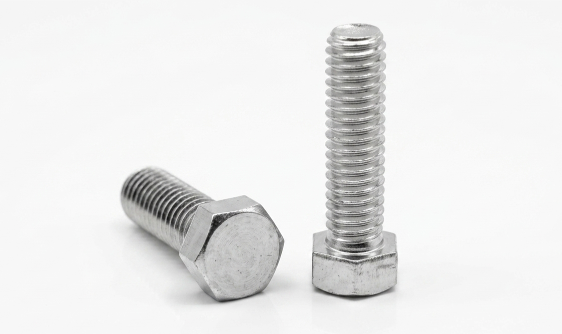

Hex Head Bolts
Heavy Hex Bolts

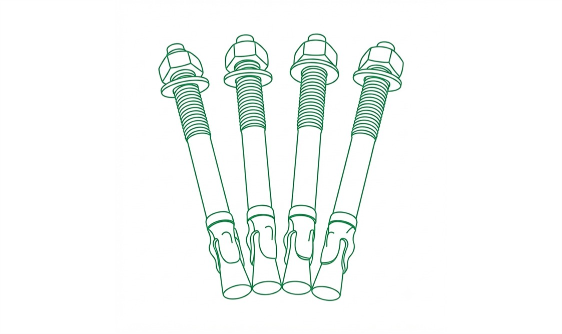

Stud Bolts
Socket Head Cap Screws
U Bolts

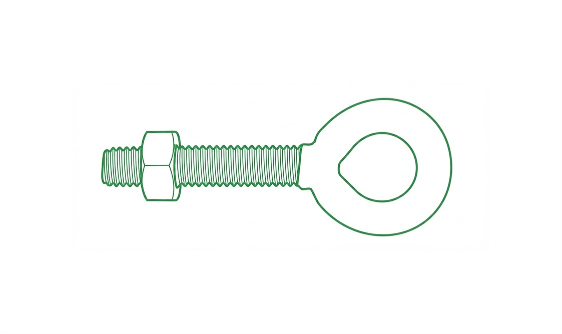

Threaded Rods
Fully Threaded Bolts
Partially Threaded Bolts
Custom Length Bolts

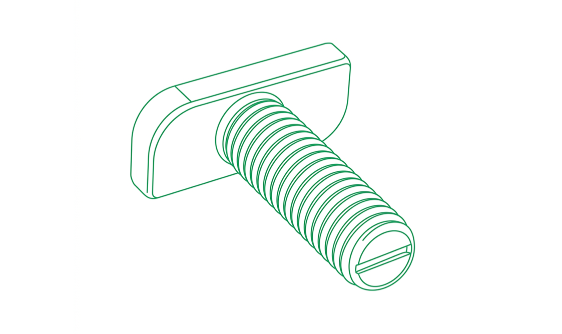

High-Diameter Bolts
Chemical Composition of Super Duplex S32750 (UNS S32750)
| Element | Min % | Max % | Functional Role |
|---|---|---|---|
| Carbon (C) | — | 0.030 | Controls carbide formation |
| Manganese (Mn) | — | 1.20 | Hot working stability |
| Silicon (Si) | — | 0.80 | Oxidation resistance |
| Chromium (Cr) | 24.0 | 26.0 | Primary corrosion resistance |
| Nickel (Ni) | 6.0 | 8.0 | Phase stability |
| Molybdenum (Mo) | 3.0 | 5.0 | Crevice corrosion resistance |
| Nitrogen (N) | 0.24 | 0.32 | Strength + pitting resistance |
| Iron (Fe) | Balance | Balance | Structural matrix |
Mechanical Properties of S32750 Bolts
| Property | Value | Engineering Significance |
|---|---|---|
| Tensile Strength | 800–1000 MPa | High load capacity |
| Yield Strength | ≥550 MPa | Structural stability |
| Elongation | ≥15% | Controlled ductility |
| Hardness | ≤28 HRC | Prevents brittle failure |
| Impact Strength | High | Offshore suitability |
| Ferrite Balance | 35–55% | Dual-phase stability |
Physical Properties & Performance Under Extreme Conditions
S32750 bolts maintain stability across wide temperature ranges and aggressive chemical exposure conditions.
Density, Melting Range & Thermal Stability: The alloy maintains structural integrity at elevated temperatures up to approximately 300°C, making it suitable for process plant and offshore thermal cycling systems.
Corrosion Resistance in Chloride, Seawater & Sour Gas Environments: The material is highly resistant to seawater corrosion, making it ideal for offshore risers, splash zones, and desalination intake systems.
Dimensional Range & Thread Specifications for S32750 Bolts
S32750 bolts are manufactured in both metric and imperial standards to support global engineering requirements.
| Parameter | Range / Standard |
|---|---|
| Metric Size Range | M6 to M100+ |
| Imperial Size Range | 1/4” to 4” |
| Thread Standards | Metric, UNC, UNF, BSW |
| Dimensional Standards | ASME B18.2.1, DIN 931 / DIN 933 |
| Manufacturing Method | CNC machining & precision threading |
Dimensional accuracy is maintained through CNC machining and precision threading to ensure perfect compatibility with flange and structural assemblies.
Manufacturing Standards & Production Quality Control
S32750 bolts are produced under strict metallurgical and mechanical controls to ensure compliance with international fastener specifications.
ASTM A1082 – High-Strength Duplex Fastener Standard: This is the primary governing standard for duplex bolting, ensuring tensile strength, hardness, and impact toughness compliance.
Cold Heading vs Hot Forging: Cold heading is used for high-volume production, ensuring grain flow continuity, while hot forging is used for large diameter bolts requiring superior structural strength.
Rolled Threads for Maximum Fatigue Resistance: Rolled threading improves fatigue life by maintaining continuous grain flow, significantly reducing stress concentration at thread roots.
Anti-Galling, Coatings & Installation Performance
S32750 bolts are prone to galling under dry installation conditions; therefore, surface engineering is critical for reliable field installation.
PTFE-based coatings such as Xylan reduce friction and prevent thread seizure during tightening. Zinc-nickel coatings improve corrosion resistance in marine environments, while passivation enhances surface oxide stability for chemical processing applications.
S32750 Bolts vs Standard Stainless Steel Bolts (Engineering Comparison)
| Property | S32750 | SS 316L | Duplex 2205 |
|---|---|---|---|
| Yield Strength | ≥550 MPa | 170–200 MPa | 450 MPa |
| Tensile Strength | 800–1000 MPa | 485 MPa | 620–800 MPa |
| PREN | >40 | ~25 | ~35 |
| SCC Resistance | Superior | Poor | Excellent |
| Offshore Use | Extreme | Limited | High |
S32750 bolts are selected when failure risk cannot be tolerated in offshore, subsea, or high-pressure systems.
Applications of Super Duplex S32750 Bolts
S32750 bolts are widely used across global heavy engineering sectors where corrosion resistance and structural reliability are critical.
| Industry | Applications |
|---|---|
| Offshore Oil & Gas | Subsea equipment frames, riser systems, platforms |
| Desalination Plants | High-pressure seawater systems, intake structures |
| Chemical Processing | Aggressive acid and chloride environments |
| Marine Engineering | Structural fabrication under continuous seawater immersion |
| Pressure Vessels | High-pressure flange connections |
| Heat Exchangers | Corrosion-critical tube and shell systems |
Regional Supply & Export Capability (Europe, US, Gulf)
USA
UAE
Saudi
Arabia
Germany
France
Italy
Spain
Netherlands
Belgium
Poland
Qatar
Oman
Kuwait
Bahrain
Quality Assurance, Testing & Certification
Each batch of S32750 bolts undergoes full mechanical and metallurgical verification including PMI testing, hardness testing, tensile validation, and ferrite phase analysis.
| Test / Inspection | Purpose |
|---|---|
| PMI Testing | Grade verification |
| Tensile Testing | Mechanical validation |
| Hardness Testing | Strength & embrittlement control |
| Ferrite Content Analysis | Dual-phase balance |
| ASTM G48 Testing | Pitting resistance confirmation |
| Dimensional Inspection | Thread & geometry accuracy |
| EN 10204 3.1 / 3.2 | Full material traceability |
EN 10204 3.1 certification ensures full traceability to heat number and chemical composition, while optional 3.2 certification provides third-party validation for critical EPC projects.
Packaging, Handling & International Shipment Protection
All S32750 bolts are protected with thread caps and anti-corrosion wraps to prevent damage during transport. They are packed in ISPM-15 certified heat-treated wooden crates designed for long-distance sea freight.
This ensures zero thread deformation and full usability upon arrival at offshore, refinery, and industrial project sites.
Related Super Duplex Fastener Grades
For higher corrosion resistance requirements in extreme seawater and acidic environments, Super Duplex S32760 Bolts can be evaluated as an upgraded alloy alternative for critical offshore applications.
Frequently Asked Questions
S32750 offers higher yield strength (≥550 MPa vs 450 MPa), higher PREN (>40 vs ~35), and superior resistance to pitting and stress corrosion cracking, making it suitable for more extreme offshore and subsea environments.
Super Duplex S32750 typically has a PREN value of 40 or higher, providing outstanding resistance to pitting and crevice corrosion in seawater and high-chloride environments.
Yes. When hardness is properly controlled, Super Duplex S32750 bolts meet the requirements of NACE MR0175 / ISO 15156 for sour service applications containing H₂S.
Yes. We manufacture heavy hex bolts, stud bolts, and custom large-diameter fasteners up to M100+ and 4” for high-pressure flange and structural applications.
We offer PTFE / Xylan coatings for anti-galling, zinc-nickel for additional marine protection, and passivation for enhanced oxide stability in chemical environments.
All bolts are supplied with EN 10204 3.1 / 3.2 certificates, PMI reports, tensile and hardness test results, ferrite analysis, and optional ASTM G48 corrosion testing and third-party inspection.
Request a Quote for Super Duplex S32750 Bolts
We supply Super Duplex S32750 hex bolts, heavy hex bolts, and custom-engineered fasteners for offshore, marine, petrochemical, and high-pressure industrial applications. Share your specifications, drawings, or quantity requirements to receive a fast quotation with full technical compliance documentation and global export support.
