Hastelloy X Round Bars Supplier & Exporter
Aurum Overseas supplies high-performance Hastelloy X Round Bars engineered to resist oxidation, carburization, and thermal degradation in extreme temperature environments up to 2200°F (1200°C). Solid-solution strengthened with chromium, iron, and molybdenum, our bar stock delivers high creep-rupture strength to extend component operating life.

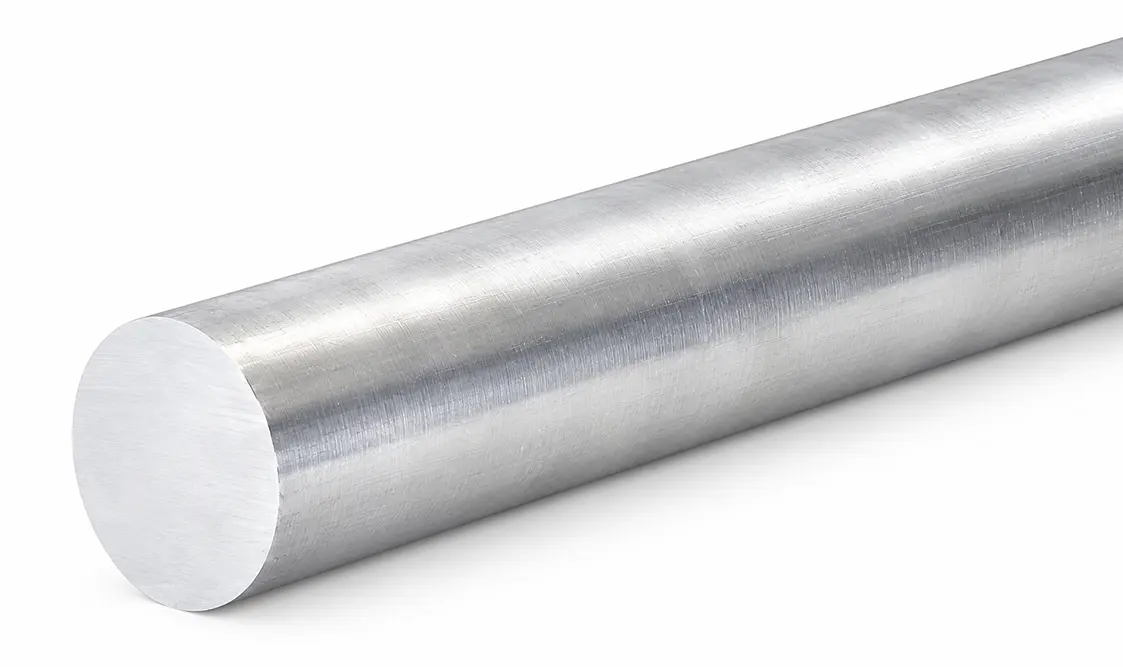

-round-bar.webp "Hastelloy X Round Bars")
As a leading Hastelloy X Round Bars Supplier and Exporter, we stock certified ASTM A276 Hastelloy X Round Bars, ASTM A479 Hastelloy X Round Bars, and UNS N06002 Round Bars with EN 10204 3.1 MTCs. We offer centerless ground bright finishes, heavy forged bars, and custom cut lengths for rapid dispatch.
We export these specialized high-temperature nickel superalloy bars across North America (USA, Canada, Mexico), Europe (Germany, UK, France, Italy, Netherlands, Norway), the Middle East (UAE, Saudi Arabia, Qatar, Kuwait, Oman), and Asia-Pacific (Singapore, Malaysia, Australia).
Technical Specifications
| Technical Parameter | Hastelloy X |
|---|---|
| Material Designation | Hastelloy X / Alloy X / UNS N06002 |
| UNS Number | UNS N06002 |
| Manufacturing Standards | ASTM B572, ASTM A276, ASTM A479, ASME SB572, AMS 5754 |
| Diameter Capability | 3 mm to 500 mm (1/8" to 20" NB) |
| Length Specifications | 3 Meters, 6 Meters, Cut-to-Length |
| Dimensional Tolerances | ISO h8, h9, h10, h11, DIN 1013 |
| Delivery Conditions | Solution Heat Treated (1175°C / 2150°F) & Rapid Quenched |
Mechanical Properties & Chemical Composition
Equivalent Grades of Hastelloy X Bars
| Standard | Werkstoff Nr. | UNS |
|---|---|---|
| Hastelloy X | 2.4665 | N06002 |
Chemical Composition of Hastelloy X Round Bars
| Chemical Element | Composition Range (%) |
|---|---|
| Nickel (Ni) | Balance / Remainder |
| Chromium (Cr) | 20.50 – 23.00 |
| Iron (Fe) | 17.00 – 20.00 |
| Molybdenum (Mo) | 8.00 – 10.00 |
| Cobalt (Co) | 0.50 – 2.50 |
| Carbon (C) | 0.05 – 0.15 |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.03 max |
Mechanical Properties of UNS N06002 Round Bars
| Property | Value |
|---|---|
| Ultimate Tensile Strength | 655 MPa min |
| Yield Strength (0.2% Offset) | 240 MPa min |
| Elongation (%) | 35% min |
| Density | 8.22 g/cm³ |
| Melting Point | 1355°C |
Types of Hastelloy X Round Bars
Aurum Overseas supplies ASTM A276 and ASTM A479 Hastelloy X Round Bars in precision bright and heavy forged conditions for extreme high-temperature service.
Hastelloy X Bright Bars
Hastelloy X Forged Bars
Key Advantages of UNS N06002 Round Bars
High Temperature Oxidation Defense
Balanced chromium (20.5–23%) and iron (17–20%) form a protective oxide scale that resists spalling and oxidation up to 2200°F (1200°C).
Creep & Stress-Rupture Strength
Solid-solution strengthening from molybdenum (8–10%) and cobalt provides exceptional mechanical resistance to high-temperature deformation under continuous thermal load.
Carburization & Nitriding Resistance
Outstanding resistance to reducing or carburizing atmospheres, protecting critical furnace hardware and heat-treating components from embrittlement.
Excellent Fabricability
Good ductility (35% min) allows cold forming and machining, while maintaining resistance to strain-age cracking during welding and post-weld fabrication.
Key Applications of Hastelloy X Round Bars
| Industry Sector | Typical Components | Operating Conditions |
|---|---|---|
| Aerospace & Gas Turbines | Combustion cans, transition ducts, spray bars, and tailpipes | Continuous extreme heat up to 2200°F, high-velocity exhaust gases, and thermal stress |
| Industrial Furnaces | Retorts, furnace baffles, conveyor rolls, and support grid bars | Carburizing and oxidizing atmospheres, high thermal cycling |
| Petrochemical Processing | Pyrolysis tubing supports, reformer components, and catalyst grids | High-temperature gas cracking, sulfur-bearing atmospheres, and thermal stress |
| Nuclear Engineering | High-temperature gas-cooled reactor core components | Extreme thermal environments, helium gas coolant exposure |
| Industrial Heating | Burner tips, radiant tubes, and thermocouple protection sheaths | Direct flame impingement, aggressive thermal cycling, and high-heat gases |
Quality Testing & Inspection
Every batch of ASTM A479 Hastelloy X Round Bars supplied by Aurum Overseas undergoes rigorous testing:
- Positive Material Identification (PMI): XRF testing verifies exact elemental concentrations of nickel, chromium, iron, molybdenum, and cobalt.
- High-Temperature Tensile Testing: Evaluates yield and tensile properties at elevated operating temperatures to ensure design limit compliance.
- Ultrasonic Inspection: Volumetric testing per ASTM A388 confirms internal soundness free of micro-voids, cracks, or forging bursts.
- Dimensional Verification: Laser micrometers guarantee strict adherence to ISO h8 to h11 tolerance limits.
Global Export Markets
As an established Hastelloy X Round Bars Exporter, Aurum Overseas supplies fully certified UNS N06002 Round Bars to global energy and thermal engineering centers:
USA
Canada
Mexico
Germany
United
Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi
Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
Hastelloy X retains exceptional mechanical strength and oxidation resistance in continuous service up to 2200°F (1200°C).
Its resistance to carburization, nitriding, and oxidizing atmospheres prevents thermal degradation and embrittlement in furnace internals and retorts.
Yes. Hastelloy X exhibits excellent weldability using standard TIG, MIG, and shielded metal arc techniques with low risk of strain-age cracking.
We supply bright and forged round bars from 3 mm up to 500 mm in diameter, available in 3-meter, 6-meter, and custom cut-to-length sizes.
Yes. All orders are delivered with certified EN 10204 3.1 Mill Test Certificates covering heat chemistry, mechanical properties, and heat treatment compliance.
