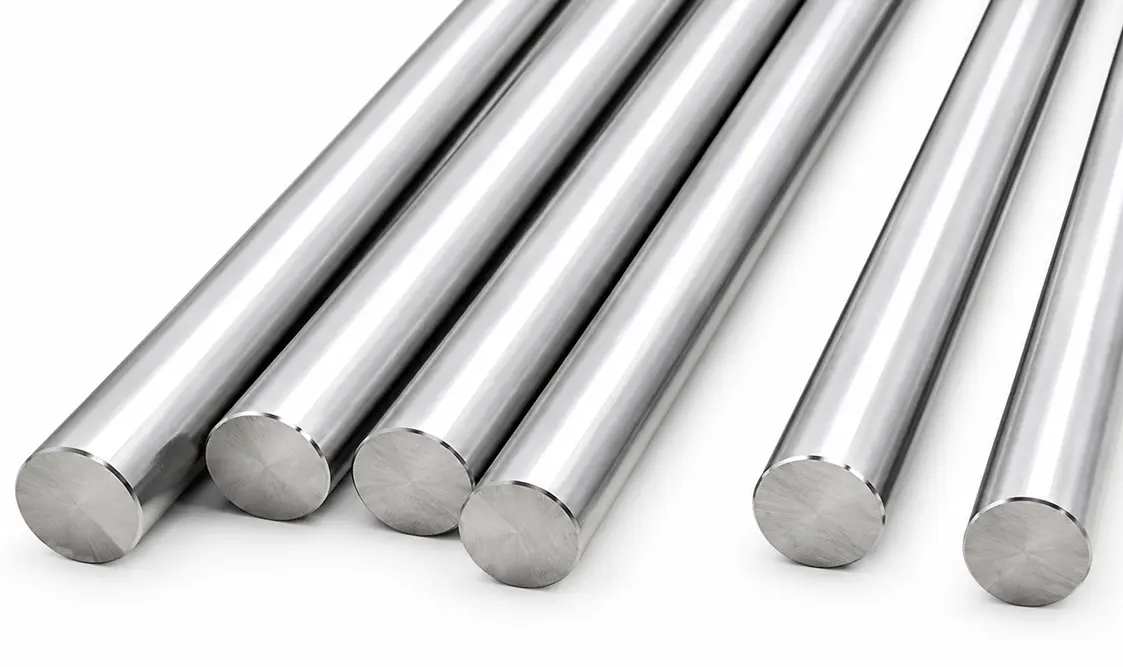

Monel K500 Round Bars Supplier & Exporter
Aurum Overseas is a premier Monel K500 Round Bars Supplier stocking high-strength, age-hardened UNS N05500 rounds. Engineered with added aluminum and titanium, our stock delivers triple the yield strength of standard Monel 400 for demanding structural applications.
As a trusted Monel K500 Round Bars Exporter, we offer certified ASTM A276 Monel K500 Round Bars and ASTM A479 Monel K500 Round Bars with complete EN 10204 3.1 MTCs. Choose from precision ground bright bars or heavy forged stock, available in standard lengths and custom cut-to-size options.
As a leading Monel K500 Round Bars Exporter, we supply high-yield round bar stock for offshore, subsea oilfield, and naval defense projects across key markets, including the USA, Germany, UAE, Saudi Arabia, Singapore, and Australia.
Technical Specifications
| Technical Parameter | Monel K500 (UNS N05500 / Werkstoff 2.4375 / Alloy K500) |
|---|---|
| Material Designation | Monel K500 / Alloy K500 |
| UNS Number | UNS N05500 |
| Werkstoff Number | 2.4375 |
| Manufacturing Standards | QQ-N-286, BS3076 NA18, ASTM A276, ASTM A479, DIN 2.4375 |
| Diameter Capability | 3 mm to 500 mm (1/8" to 20" NB) |
| Length Specifications | 3 Meters, 6 Meters, Cut-to-Length |
| Dimensional Tolerances | ISO h8, h9, h10, h11, DIN 1013 |
| Delivery Conditions | Solution Annealed (Unaged), Precipitation Hardened (Age-Hardened) |
Mechanical Properties & Chemical Composition
Equivalent Grades of Monel K500 Bars
| Standard | Werkstoff Nr. | UNS |
|---|---|---|
| Monel K500 | 2.4375 | N05500 |
Chemical Composition of Monel K500 Round Bars
| Chemical Element | Composition Range (%) |
|---|---|
| Nickel (Ni) | 63.0 min |
| Copper (Cu) | 27.0 – 33.0 |
| Aluminum (Al) | 2.30 – 3.15 |
| Iron (Fe) | 0.50 – 2.00 |
| Manganese (Mn) | 1.50 max |
| Titanium (Ti) | 0.35 – 0.85 |
| Silicon (Si) | 0.50 max |
| Carbon (C) | 0.25 max |
| Sulfur (S) | 0.010 max |
Mechanical Properties of UNS N05500 Round Bars
| Property | Value |
|---|---|
| Ultimate Tensile Strength | 1100 MPa (160,000 Psi) min |
| Yield Strength (0.2% Offset) | 790 MPa (115,000 Psi) min |
| Elongation (%) | 20% min |
| Density | 8.44 g/cm³ |
| Melting Point | 1350 °C (2460 °F) |
Types of Monel K500 Round Bars
Aurum Overseas supplies ASTM A276 and ASTM A479 Monel K500 Round Bars in precision bright and heavy forged conditions for marine and oilfield service.
Monel K500 Bright Bars
Monel K500 Forged Bars
Key Advantages of UNS N05500 Round Bars
High Mechanical Yield Strength
Age-hardened with aluminum (2.3–3.15%) and titanium (0.35–0.85%) to deliver a massive 790 MPa minimum yield strength for extreme mechanical loads.
NACE MR0175 Sour Gas Certified
Impervious to sulfide stress cracking (SSC) and hydrogen embrittlement in harsh, downhole sour oilfield environments.
Non-Magnetic Performance
Retains ultra-low magnetic permeability from ambient down to cryogenic temperatures, making it essential for non-magnetic drill collars and sensitive electronics.
Cavitation & Wear Resistance
Enhanced surface hardness protects pump impellers, propeller shafts, and valve stems against high-velocity seawater erosion and cavitation.
Key Applications of Monel K500 Round Bars
| Industry Sector | Typical Components | Operating Conditions |
|---|---|---|
| Oil & Gas Drilling | Non-magnetic drill collars, downhole tool shafts, wellhead valves, and rotary stems | Deep sour gas wells (H₂S), high-pressure brines, and heavy torsional loads |
| Marine & Naval Defense | Propeller shafts, impellers, valve stems, pump shafts, and marine fasteners | High-velocity seawater currents, cavitation environments, and heavy dynamic loading |
| Chemical Processing | Mixers, doctor blades, scrapers, and slurry pump shafts | Corrosive process streams, abrasive mineral slurries, and continuous shear forces |
| Offshore Subsea Engineering | Subsea riser bolts, hydraulic line shafts, and mooring hardware | High hydrostatic pressures, splash zone exposure, and cyclical wave stress |
| Aerospace & Defense | Rocket engine pump shafts, instrument components, and non-magnetic housings | Extremes in thermal loading, high shaft speeds, and strict non-magnetic limits |
Quality Testing & Inspection
Every batch of ASTM A479 Monel K500 Round Bars supplied by Aurum Overseas undergoes rigorous testing:
- Positive Material Identification (PMI): High-precision XRF testing confirms chemical compliance, ensuring proper ratios of nickel (63% min), copper, aluminum, and titanium.
- Mechanical Strength Verification: Tensile testing verifies that age-hardened stock achieves a minimum 790 MPa yield strength and 1100 MPa ultimate tensile strength.
- Hardness Testing: Brinell and Rockwell C scale measurements confirm uniform age-hardening through the core of large-diameter forged bars.
- Ultrasonic Volumetric Testing: Ultrasonic examination per ASTM A388 detects subsurface inclusions, micro-cracks, or forging discontinuities.
Global Export Markets
As an established Monel K500 Round Bars Exporter, Aurum Overseas supplies fully certified UNS N05500 Round Bars to global energy and marine engineering centers:
USA
Canada
Mexico
Germany
United
Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi
Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
Monel K500 contains added aluminum and titanium, allowing age-hardening heat treatment. This triples the yield strength and doubles the tensile strength compared to Monel 400 while keeping the same excellent corrosion resistance.
Yes. Monel K500 remains non-magnetic even after age-hardening and down to cryogenic temperatures, making it ideal for non-magnetic drill collars and sensor housings.
We stock sizes from 3 mm to 500 mm in centerless ground bright finishes and heavy hot-forged conditions, available in standard 3-meter, 6-meter, or custom cut-to-length options.
Yes. Every order ships with complete EN 10204 3.1 Mill Test Certificates verifying heat chemistry, mechanical properties, hardness, and heat treatment compliance.
Contact Aurum Overseas
Aurum Overseas provides fully certified Monel K500 Round Bars engineered to meet rigorous marine and energy sector specifications.
Contact our sales engineering team for stock availability, custom cut lengths, or immediate price quotes:
