Inconel X750 Square & Hex Bars Overview
Inconel X750 Bars are provided by Aurum Overseas, a leading global supplier and exporter. Our ASTM B637 UNS N07750 Square Bars and ASTM B637 UNS N07750 Hexagonal Bars deliver exceptional creep-rupture strength up to 704 °C. As a top Inconel X750 Square Bars and Hex Bars Supplier, all our stock meets ASTM B637 and AMS 5667 standards.
We offer competitive prices on Alloy X750 Bars and Nickel Alloy X750 Bars without compromising material quality. As a trusted Inconel X750 Square Bars and Hex Bars Exporter, our inventory includes hot-rolled square stock and bright hex profiles engineered for precision CNC machining.
Our bars are widely used in gas turbines, rocket engines, nuclear reactors, and high-temperature springs. Contact Aurum Overseas today for instant price quotes and official mill test certificates.
Technical Specifications
| Technical Parameter | Specification Standard |
|---|---|
| Material Specifications | ASTM B637, ASME SB637, AMS 5667, AMS 5668, BS HR 505 |
| UNS Designation | UNS N07750 |
| Across-Flats (AF) Size Range | 6.0 mm to 120.0 mm (1/4" to 4-1/2" Square & Hexagon Profiles) |
| Length Options | 1,000 mm to 6,000 mm, Precision Sawing Cut-to-Length |
| Surface Finishes | Cold Drawn, Centerless Ground, Bright Annealed, Hot Rolled, Forged |
| Heat Treatment Condition | Equalized & Precipitation Age-Hardened |
| Dimensional Tolerances | ASTM B637 / ISO 286-2 (h9, h10, h11 profile tolerances) |
| HSN Code | 75052200 |
Chemical Composition & Mechanical Properties
Equivalent Standards
| Standard / Grade | Werkstoff Nr. | UNS Designation | JIS Standard |
|---|---|---|---|
| Inconel X750 | 2.4669 | N07750 | NCF X-750 |
Chemical Composition (%)
| Element | Specification Range (UNS N07750) |
|---|---|
| Nickel (Ni) | 70.0 min |
| Chromium (Cr) | 14.0 – 17.0 |
| Titanium (Ti) | 2.25 – 2.75 |
| Aluminum (Al) | 0.40 – 1.00 |
| Niobium (Nb) | 0.70 – 1.20 |
| Iron (Fe) | 5.0 – 9.0 |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 0.50 max |
| Copper (Cu) | 0.50 max |
| Carbon (C) | 0.08 max |
| Sulfur (S) | 0.01 max |
Mechanical & Physical Properties
| Property Parameter | Metric Units | Imperial Units |
|---|---|---|
| Density | 8.28 g/cm³ | 0.299 lb/in³ |
| Melting Point | 1430 °C | 2600 °F |
| Tensile Strength (Min / Typical Age-Hardened) | 1267 MPa | 183,700 Psi (183.7 ksi) |
| Yield Strength (0.2% Offset, Min / Typical) | 868 MPa | 125,900 Psi (125.9 ksi) |
| Elongation (Min) | 25 % | 25 % |
Types of Inconel X750 Bars: Hexagonal & Square Profiles
Aurum Overseas supplies Inconel X750 (UNS N07750) bars in precision hexagonal and square profiles for high-stress aerospace and turbine applications.
ASTM B637 UNS N07750 Hex Bars
ASTM B637 UNS N07750 Square Bars

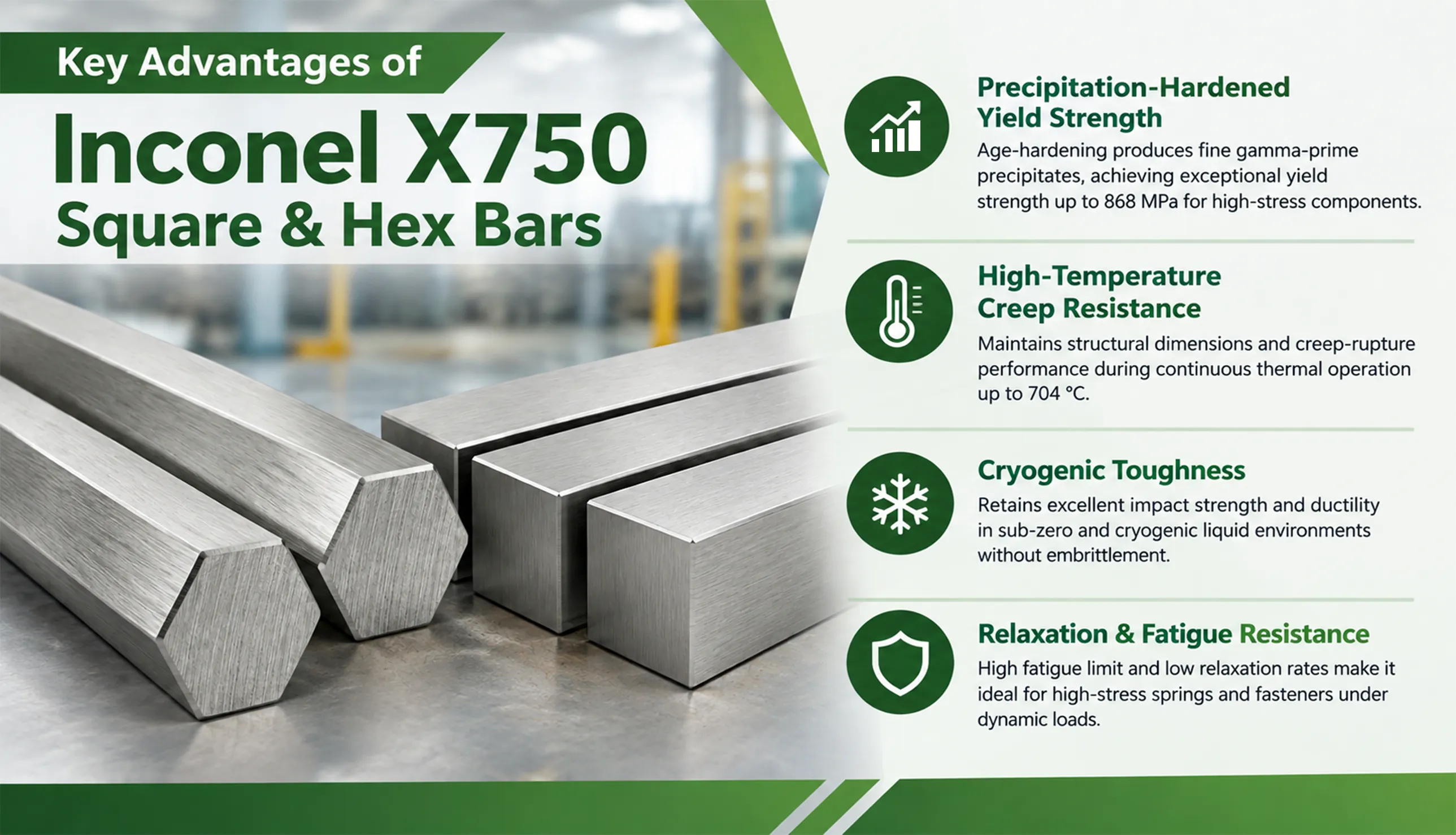

Key Advantages of Inconel X750 Square & Hex Bars
Precipitation-Hardened Yield Strength
Age-hardening produces fine gamma-prime precipitates, achieving exceptional yield strength up to 868 MPa for high-stress components.
High-Temperature Creep Resistance
Maintains structural dimensions and creep-rupture performance during continuous thermal operation up to 704 °C.
Cryogenic Toughness
Retains excellent impact strength and ductility in sub-zero and cryogenic liquid environments without embrittlement.
Relaxation & Fatigue Resistance
High fatigue limit and low relaxation rates make it ideal for high-stress springs and fasteners under dynamic loads.
Key Applications of Inconel X750 Square & Hex Bars
| Industry | Applications | Operational Benefit |
|---|---|---|
| Gas Turbines & Aerospace | Rotor bolts, turbine blades, lock wire hex fasteners, thrust hardware | Prevents high-temperature creep extension and bolt relaxation in extreme thermal stress zones. |
| Nuclear Power Plants | Fuel grid springs, control rod drive mechanism hex fittings, studs | Withstands high neutron irradiation exposure and pressurized water stress cracking. |
| Rocket Propulsion | Combustion chamber hardware, high-pressure liquid oxygen pump shafts | Retains ultra-high tensile property values and fracture toughness at cryogenic fluid temperatures. |
| Industrial Tooling | Hot-extrusion die inserts, high-temperature spring stock, square brackets | Delivers long production life under severe cyclic mechanical loads and elevated heat. |
Quality Testing & Inspection
As a certified Inconel X750 Square Bars and Hex Bars Exporter, Aurum Overseas enforces rigorous quality verification protocols on every production heat:
- Positive Material Identification (PMI): 100% XRF testing to verify exact 70.0% min Ni, 14.0–17.0% Cr, and 2.25–2.75% Ti composition.
- Heat Treatment Verification: Solution annealing and multi-stage precipitation age-hardening certification for gamma-prime phase uniformity.
- Mechanical & Creep Testing: Room temperature and high-temperature tensile testing along with creep-rupture validation strictly per ASTM B637.
Global Export Markets
As an established Inconel X750 Square & Hex Bar Exporter, Aurum Overseas supplies fully certified ASTM B637 UNS N07750 bars to global aerospace, nuclear, rocket propulsion, and industrial tooling facilities:
USA
Canada
Mexico
Germany
United Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
Equalizing solution treatment followed by precipitation age-hardening yields maximum tensile strength (1267 MPa typical) and high-temperature creep-rupture resistance up to 704 °C.
Yes, the high yield strength and low thermal relaxation properties of age-hardened Inconel X750 make it an industry standard for turbine casing bolts and aerospace fasteners.
Cold-drawn bright bars are produced to ISO h9, h10, and h11 profile tolerances, providing exact dimensional accuracy for automated CNC machining.
Every shipment from Aurum Overseas includes comprehensive EN 10204 3.1 Mill Test Certificates detailing heat chemistry, mechanical properties, heat treatment charts, and NDT clearance.
Contact Aurum Overseas
Partner with a trusted Inconel X750 Square Bars and Hex Bars Supplier for certified superalloy inventory, precision cutting services, and rapid global delivery.
