Hastelloy C4 Threaded Bars Overview
Aurum Overseas is a recognized Hastelloy C4 Threaded Bars Supplier & Exporter, stocking high-performance nickel-chromium-molybdenum fasteners produced in compliance with ASTM B574 standards. Engineered to prevent grain-boundary precipitation during high-temperature exposure, these studs maintain exceptional ductility and corrosion resistance even after repeated thermal cycling.

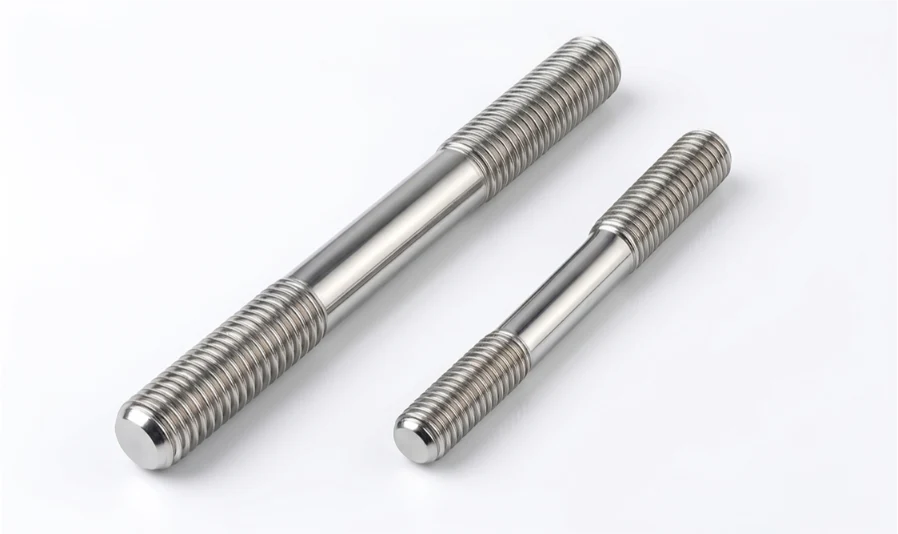

-threaded-bar.webp "Hastelloy C4 Threaded Bars")
Our inventory of ASTM B574 UNS N06455 Threaded Bars utilizes a low-carbon chemistry stabilized with Titanium (up to 0.7%) and low Iron content (3.0% max). This metallurgical formulation prevents the formation of intermetallic phases between 650 °C and 1040 °C, guaranteeing structural integrity in welded assemblies.
Built for chlorination loops, fertilizer vessels, and pickling units, our UNS N06455 Threaded Rods deliver reliable, leak-tight joints. Contact Aurum Overseas for factory quotes, custom cutting, and fast global delivery.
Technical Specifications
| Technical Parameter | Specification Standard |
|---|---|
| Material Specifications | ASTM B574, ASME SB574, EN 10204 3.1 |
| UNS Designation | UNS N06455 (Hastelloy C4) |
| Thread Size Range | M6 to M100 (1/4" to 4.0" Nominal Diameter) |
| Thread Profiles | UNC, UNF, UNEF, Metric Coarse, Metric Fine, Acme Threads |
| Length Options | 1,000 mm, 2,000 mm, 3,000 mm, Custom Cut-to-Length All-Thread Studs |
| Thread Class / Fit | Class 2A / 3A (Imperial) & 6g / 6h (Metric Profile Tolerances) |
| HSN Code | 75089090 |
Chemical Composition & Mechanical Properties
Equivalent Standards
| Grade | Standard | W.Nr. | UNS |
|---|---|---|---|
| Hastelloy C4 | ASTM B574 / B575 | 2.4610 | N06455 |
Chemical Composition (%)
| Chemical Element | Hastelloy C4 (UNS N06455) |
|---|---|
| Nickel (Ni) | 65.00 min |
| Molybdenum (Mo) | 14.00 – 17.00 |
| Chromium (Cr) | 14.00 – 18.00 |
| Iron (Fe) | 3.00 max |
| Cobalt (Co) | 2.00 max |
| Titanium (Ti) | 0.70 max |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 0.08 max |
| Carbon (C) | 0.010 max |
Mechanical & Physical Properties
| Property Parameter | Hastelloy C4 (UNS N06455) |
|---|---|
| Density | 8.64 g/cm³ |
| Melting Range | 1350 – 1400 °C |
| Tensile Strength (Min) | 783 MPa |
| Yield Strength (0.2% Offset, Min) | 365 MPa |
| Elongation (Min) | 55 % |
Key Advantages of Hastelloy C4 Threaded Rods
High Thermal Stability
Controlled Titanium additions prevent intermetallic phase precipitation in the heat-affected zone, maintaining post-weld corrosion resistance.
Resistance to Oxidizing & Reducing Media
Balanced Chromium (14–18%) and Molybdenum (14–17%) content provides dual protection against mineral acids, chlorine, and organic solutions.
High Ductility & Formability
An elongation rating of 55% enables exceptional impact resistance and thermal fatigue toughness under heavy dynamic loads.
Precision Roll-Threaded Quality
Smooth thread flanks reduce friction during assembly, preventing galling and securing joint integrity under continuous pressure.
Quality Testing & Inspection
Aurum Overseas subjects every shipment to stringent Quality Assurance protocol to ensure compliance with global fastener standards and customer engineering requirements:
- Chemical Verification (PMI): XRF/Spectro chemical analysis validating exact element concentrations per ASTM B574 specs.
- Dimensional & Thread Pitch Inspection: Go/No-Go thread gage testing and optical comparator verification ensuring exact 2A/3A or 6g pitch tolerances.
- Mechanical Batch Testing: Tensile strength, yield strength, and elongation verification backed by EN 10204 3.1 Material Test Reports.
- Optional Specialized Testing: Ultrasonic testing, intergranular corrosion testing (ASTM G28), or proof load testing available upon request.
Global Export Markets
As an established Hastelloy C4 Threaded Bars Exporter, Aurum Overseas supplies fully certified ASTM B574 UNS N06455 threaded rods to global chemical processing, offshore, and high-strength industrial facilities:
USA
Canada
Mexico
Germany
United
Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi
Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
Hastelloy C4 eliminates Tungsten and adds Titanium stabilization with lower Iron, giving it superior thermal stability and resistance to grain-boundary precipitation during high-temperature exposure.
They excel in hot contaminated mineral acids, wet chlorine gas, acetic acid solutions, acetic anhydride, seawater, and pickling acid mixtures.
Yes. As a leading Hastelloy C4 Threaded Bars Exporter, we regularly deliver to oil, gas, and petrochemical facilities across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.
Yes. Chemical equipment fabricators across the USA, Canada, Germany, the UK, France, and the Netherlands specify our C4 fasteners for high-temperature reactor vessels.
