Hastelloy X Threaded Bars Overview
Aurum Overseas is a leading Hastelloy X Threaded Bars Supplier & Exporter, stocking high-temperature nickel-chromium-iron-molybdenum alloy fasteners made to ASTM B572 standards. Engineered for extreme thermal service, these studs retain high tensile strength and oxidation resistance up to 1200 °C.

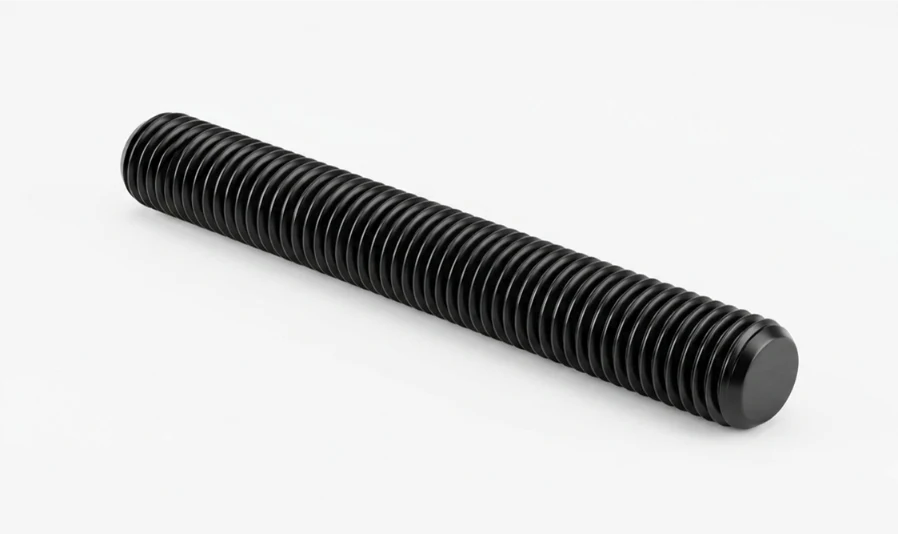

-threaded-bar.webp "Hastelloy X Threaded Bars")
Our stock of ASTM B572 UNS N06002 Threaded Bars features 20.50–23.00% Chromium, 17.00–20.00% Iron, and 8.00–10.00% Molybdenum. This formulation prevents thermal deformation, carburization, and stress relaxation during prolonged exposure in high-heat environments.
Built for gas turbine transition ducts, petrochemical cracking furnaces, and aerospace burner cans, our UNS N06002 Threaded Rods deliver reliable fastening under thermal stress. Contact Aurum Overseas for factory quotes, custom length sawing, and fast global shipping.
Technical Specifications
| Technical Parameter | Specification Standard |
|---|---|
| Material Specifications | ASTM B572, ASME SB572, EN 10204 3.1 |
| UNS Designation | UNS N06002 (Hastelloy X) |
| Thread Size Range | M6 to M100 (1/4" to 4.0" Nominal Diameter) |
| Thread Profiles | UNC, UNF, UNEF, Metric Coarse, Metric Fine, Acme Threads |
| Length Options | 1,000 mm, 2,000 mm, 3,000 mm, Custom Cut-to-Length All-Thread Studs |
| Thread Class / Fit | Class 2A / 3A (Imperial) & 6g / 6h (Metric Profile Tolerances) |
| HSN Code | 75089090 |
Chemical Composition & Mechanical Properties
Equivalent Standards
| Grade | Standard | W.Nr. | UNS | JIS | EN |
|---|---|---|---|---|---|
| Hastelloy X | ASTM B572 | 2.4665 | N06002 | NW 0276 | NiMo16Cr15W |
Chemical Composition (%)
| Chemical Element | Hastelloy X (UNS N06002) |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.50 – 23.00 |
| Iron (Fe) | 17.00 – 20.00 |
| Molybdenum (Mo) | 8.00 – 10.00 |
| Cobalt (Co) | 0.50 – 2.50 |
| Carbon (C) | 0.05 – 0.15 |
| Manganese (Mn) | 1.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorus (P) | 0.04 max |
| Sulfur (S) | 0.03 max |
Mechanical & Physical Properties
| Property Parameter | Hastelloy X (UNS N06002) |
|---|---|
| Density | 8.22 g/cm³ |
| Melting Point | 1355 °C |
| Tensile Strength (Min) | 665 MPa |
| Yield Strength (0.2% Offset, Min) | 240 MPa |
| Elongation (Min) | 35 % |
Key Advantages of Hastelloy X Threaded Rods
High-Heat Resistance
Retains strong clamping force and resists scaling in continuous high-temperature service up to 1200 °C.
Resists Creep & Sag
Molybdenum and Iron addition prevents studs from stretching or loosening under high heat and continuous heavy loads.
Furnace Gas Protection
Fights off carbon absorption and damage from harsh combustion gases, nitriding, and furnace atmospheres.
Smooth & Secure Threading
Precision roll-threaded construction prevents thread stripping and jamming under thermal expansion.
Quality Testing & Inspection
Aurum Overseas subjects every shipment to full Quality Assurance protocols to ensure adherence to global aerospace and petrochemical fastener standards:
- Positive Material Identification (PMI): Spectro / XRF analysis confirming exact elemental composition per ASTM B572 specs.
- Dimensional & Thread Pitch Inspection: Go/No-Go gage testing and optical comparator checks ensuring 2A/3A and 6g thread fit tolerances.
- Mechanical Batch Testing: Tensile strength, yield strength, and elongation verification certified via EN 10204 3.1 Material Test Reports.
- Optional Specialized Inspections: High-temperature stress rupture testing, dye penetrant inspection, or ultrasonic NDT upon customer request.
Global Export Markets
As an established Hastelloy X Threaded Bars Exporter, Aurum Overseas supplies fully certified ASTM B572 UNS N06002 threaded rods to global aerospace, petrochemical, and high-temperature industrial facilities:
USA
Canada
Mexico
Germany
United
Kingdom
France
Italy
Netherlands
Belgium
Spain
Poland
UAE
Saudi
Arabia
Qatar
Kuwait
Oman
Bahrain
Frequently Asked Questions
Hastelloy X retains exceptional strength, structural stability, and oxidation resistance at operating temperatures reaching up to 1200 °C (2200 °F).
Its 17–20% Iron and 20.5–23% Chromium balance gives it outstanding resistance to carburization, nitriding, and reducing combustion gas atmospheres.
They are widely used in aerospace gas turbines, jet engine combustion components, industrial heating furnaces, petrochemical cracking units, and nuclear engineering.
Yes. As a major Hastelloy X Threaded Bars Exporter, we supply power generation, refinery, and petrochemical plants across the UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain.
Yes. All international shipments are delivered with complete EN 10204 3.1 Material Test Reports (MTRs) certifying chemical heat verification and physical testing results.
Contact Aurum Overseas
Contact Aurum Overseas, a premier Hastelloy X Threaded Bars Supplier & Exporter, for certified ASTM B572 threaded rods, cut-to-length studs, and fast worldwide shipping.
